New Design Tested Singlemode Simplex 3 5 10M SC / APC - FC / APC FTTH OFNP Fiber Optic Patch Cord
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | TEST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Packaging Details: | Wooden Drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KM/Drum or Other Package Lengths Customized |
|
Detail Information |
|||
| Connection Header Type: | FC、SC、LC、ST | ||
|---|---|---|---|
| Highlight: | FTTH fiber optic patch cord,SC APC FC APC fiber patch cable,OFNP singlemode simplex fiber cord |
||
Product Description
New Design Tested Singlemode Simplex 3 5 10M SC/APC - FC/APC FTTH OFNP Fiber Optic Patch Cord
Product Specifications
| Attribute | Value |
|---|---|
| Connection header type | FC, SC, LC, ST |
Technical Parameters
| Parameters | Unit | Numerical value |
|---|---|---|
| Connection header type | - | FC, SC, LC, ST |
| Central wavelength | nm | 1550 | 1310 | 1300 | 850 |
| Maximum insertion loss (23℃) | dB | Typical value 0.1 maximum 0.15 |
| Minimum callback loss (23°C) | PC: dB UPC: dB APC: dB |
≥45 ≥55 ≥65 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| Axis alignment Angle tolerance | deg | ±0.3 |
| Plug the number | Next | ≥1000 |
| Operating temperature | ℃ | -20~+70 |
| Storage temperature | ℃ | -40~+85 |

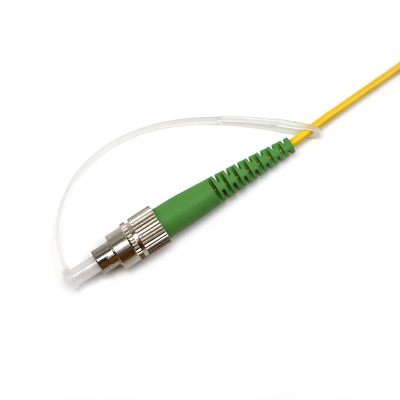

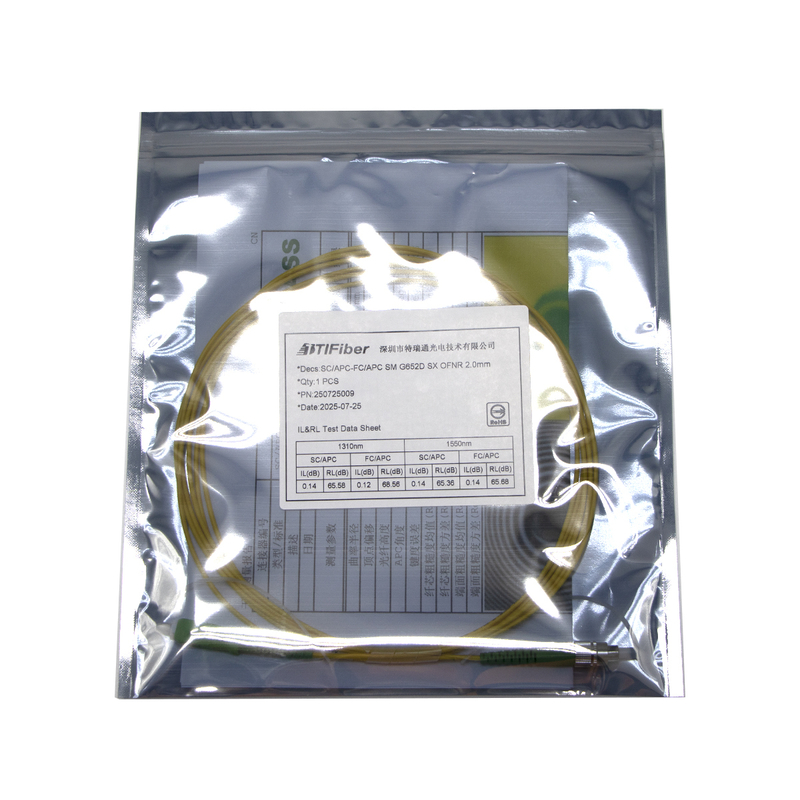

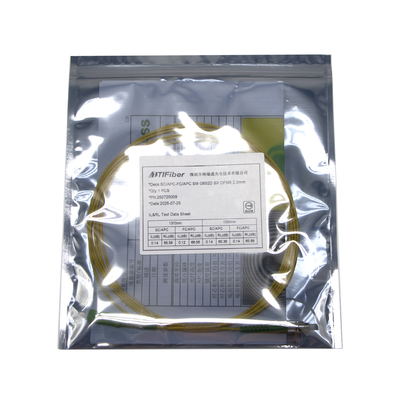

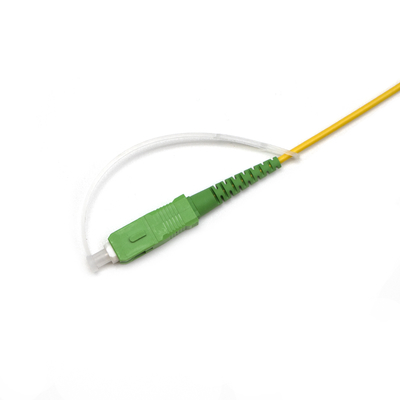

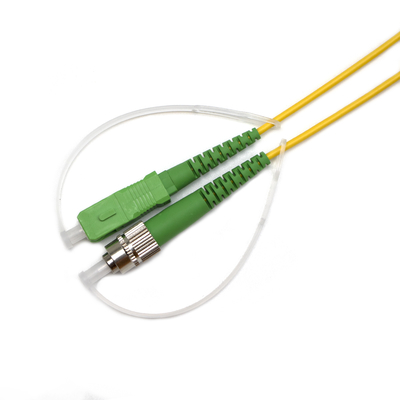

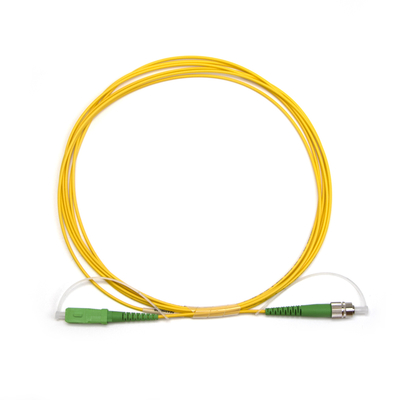

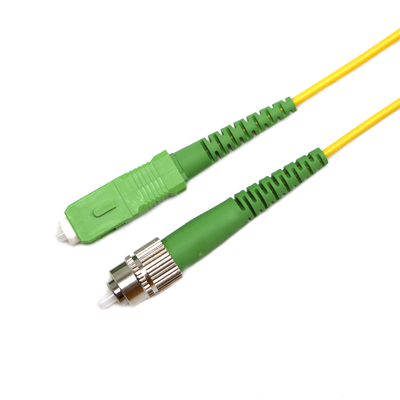

Product Images
