FTTH Drop Cable Use Fiber Optic Fast Connector SC UPC OM3
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | TTI |
Certification: | ROHS, SGS |
Model Number: | QAC-SC |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |

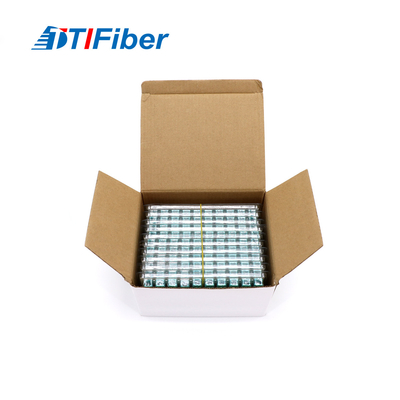

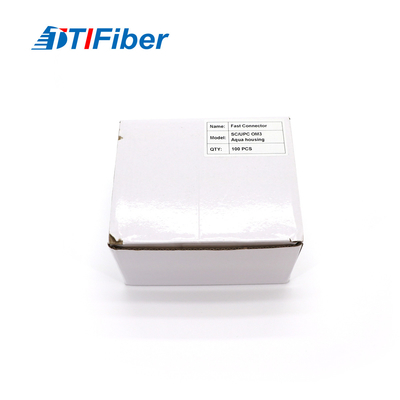

Packaging Details: | 1PCS/PE Bag |
Delivery Time: | 3-25 days, it also depends on quantity |
Payment Terms: | T/T, L/C, Western Union, PayPal |
Supply Ability: | 10000pcs/day |
Detail Information |
|||
Product Name: | LC Fast Connector, INST Ftth 32pon+catv Wdm EDFA, Quick Fast Connector, Ftth Node, High Quality Wholesale Ftth Epon Onu /GPON ONU Price ONU Device | Color: | Black, White, Blue, Yellow, Black&White |
---|---|---|---|
Type: | GPON OLT, Aerial, ONU/ONT, Wireless, Zte C320 Mini Gpon Olt | Application: | FTTH FTTB FTTX Network |
Wavelength: | 1490nm TX, 1310/1490nm, 1310nm RX, 1550 Nm, 1528nm~1560nm | Power Supply: | 12V DC, 220V, 100V~240V AC/50Hz~60Hz, 220VAC, DC+5V GND(Module) |
Weight: | 0.18KG, 3.1kg, 2kg, 4KG, 4.2KG | Connector Type: | LC/APC, 1000BASE-PX20+, SC APC |
Return Loss: | >=50 DB, PC >45dB UPC >55dB APC >60dB, More Than 55db, ≥45dB | Power Consumption: | <4.2W, 30W, 15W, 6W |
Fiber Type: | SM MM, 9/125μm SMF, G657A2, G652d | Pon Port: | 1*GPON Port, 2.5G, 2/4/8 PON Ports |
Material: | Metal, Plastic | Operating Temperature: | 0~70 °C, -40 ~ +85℃, 0 ~ 50 Degrees C |
Storage Temperature: | -40 - 85, -40~85℃, 30~60°C | Insertion Loss: | ≤0.5dB, <=0.3 DB, PC/UPC/APC< 0.2dB |
Connector: | RJ45, SC, PON Port, SC/PC | Transmission Distance: | 20KM, 20KM/40KM |
Highlight: | FTTH Solution LC Quick Connector,FTTH Use LC Fast Connector,Fiber Optic Fast Connector OM3 |
Product Description

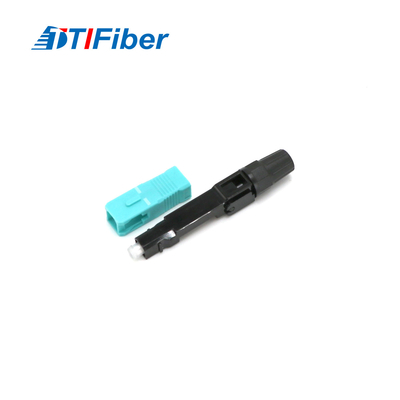

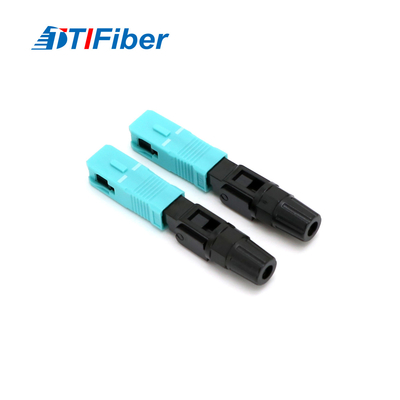

FTTH Drop Cable Use Fiber Optic Fast Connector SC UPC OM3 Compatible Quick Connector
Description:
Quick assembly connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Singlemode and Multimode and suitable for 2*3.0mm drop cable.
Quick Detail:
- Name: SC Fast Connector
- Ferrule end-face: UPC, APC
- Ferrule size: 2.5mm
- Structure: Pre-polished, Un-polished
- Connector: FC, LC, SC
- Fiber: G652D G657A
Feature:
- No special assembling tool
- Quick and easy for assembling
- Reusable and repeat operation times are up to 300
- Integrated protection of the casing to prevent the connector form impact
- Can be installed in two minutes
- Power-save, as it does not need hot melting
- Without any gluing and polishing process
Application:
- FTTH/FTTX/FTTD
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- Connection at the desk for LAN environments
- Terminal box
Specification:
Applicable for | Drop cable. Indoor cable(2.0/3.0mm) |
Optical fiber diameter | 125μm |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | <= 0.3dB |
Return loss | >=50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |

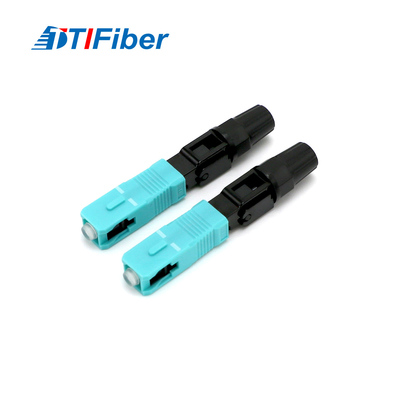

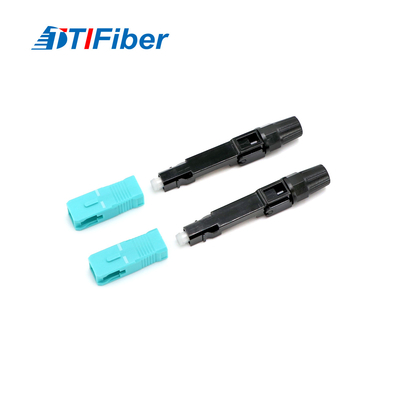

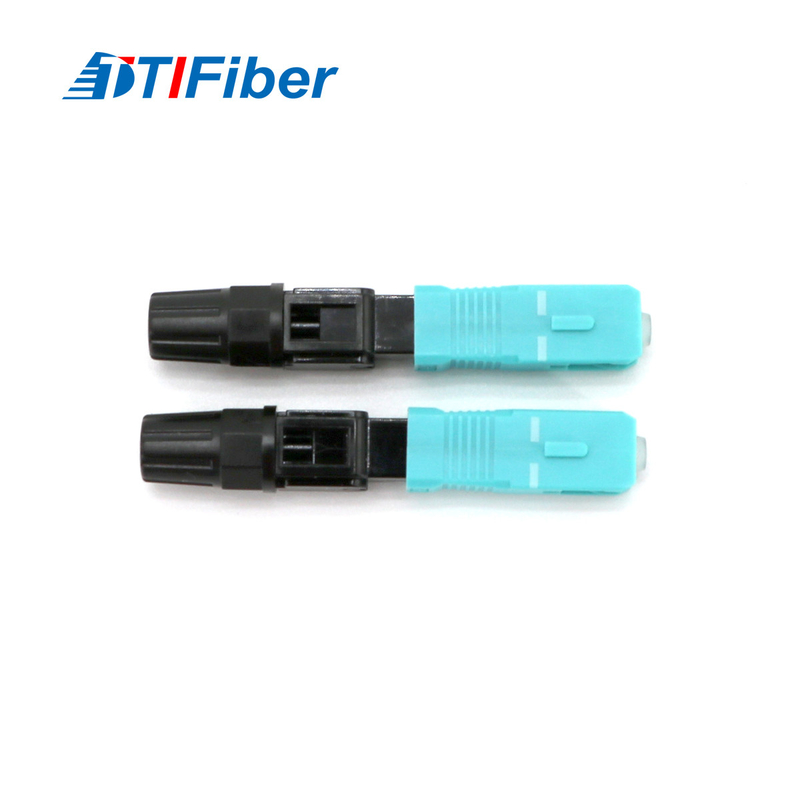

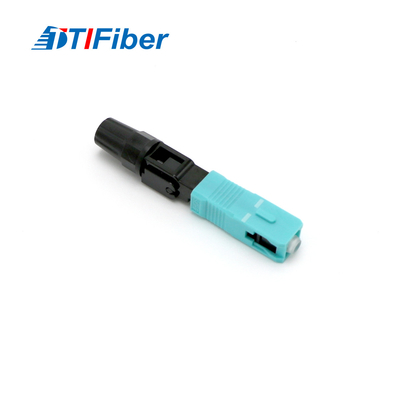

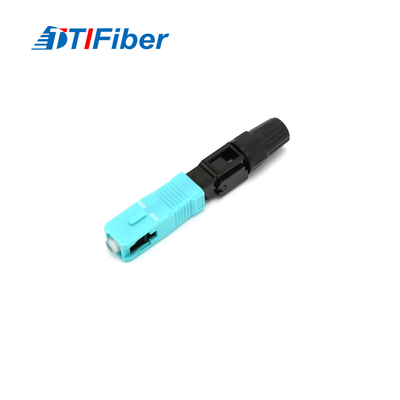

Product Display:
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: PC, UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Mode: Pre-polished, Non-polished
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Factory Show:
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
