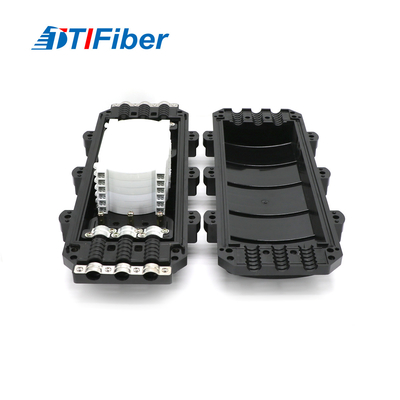

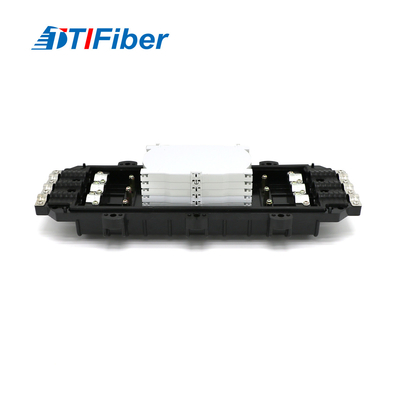

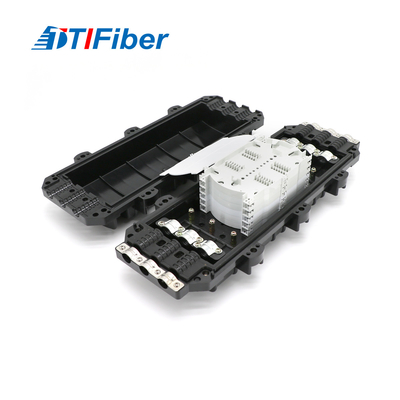

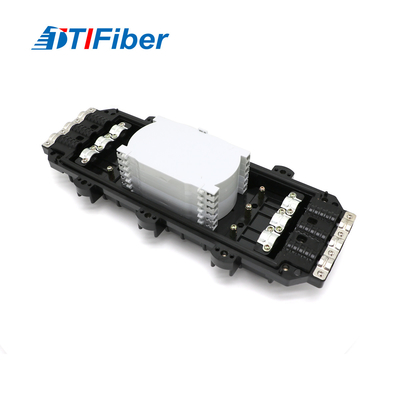

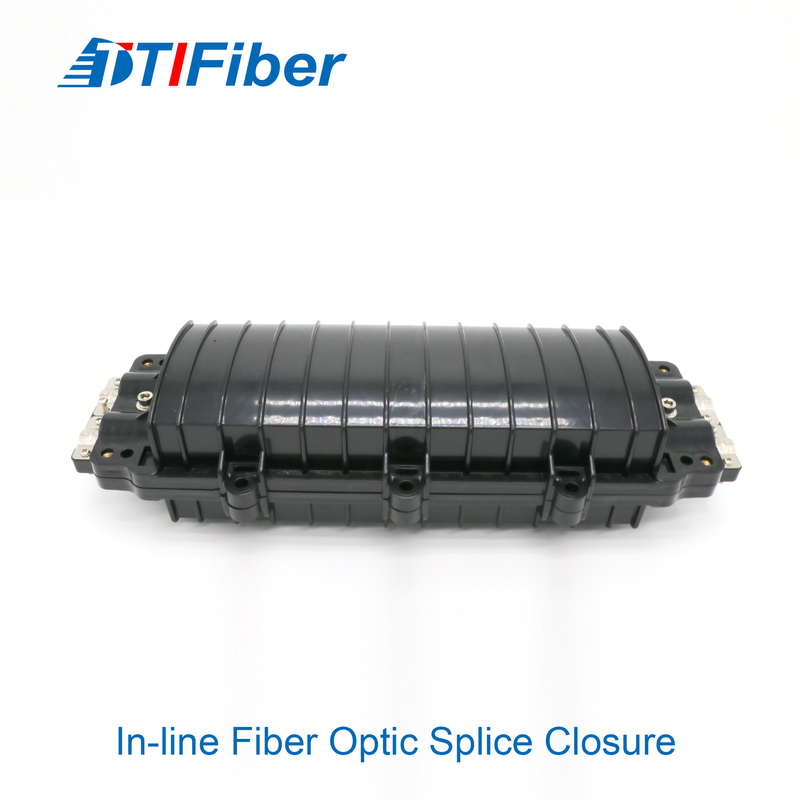

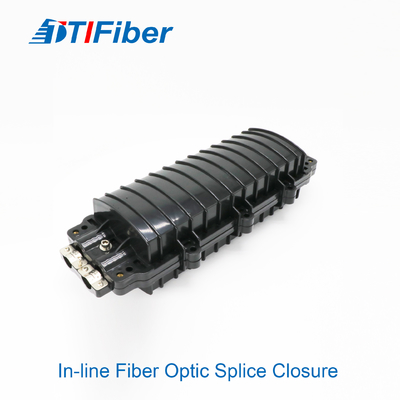

Horizontal 2 Inlet And 2 Outlet Fiber Optic Splice Closure 12 - 96 Core
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | ROHS |
| Model Number: | FOSC-H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Piece |
|---|---|
| Price: | USD |
| Packaging Details: | Carton Boxes |
| Delivery Time: | 2-3 Days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 1000 Pieces /Day |
|
Detail Information |
|||
| Name: | Fiber Optic Splice Closure | Type: | Horizonal |
|---|---|---|---|
| Colour: | Black | Material: | PC |
| Weight: | 1.6kg-5kg | Ports: | OEM Available |
| Certication: | ROHS | Application: | Network Equipment |
| High Light: | 2 Inlet Fiber Optic Splice Closure,2 Outlet Fiber Optic Splice Closure |
||
Product Description
Horizontal Optical 12~96 Core 2 Inlet And 2 Outlet Fiber Optic Splice Closure
Specification:
Suitable for cable whose diameter, it can be used in aerial, duct and direct buried application as well as the all-plastic local cable connection.
Mainly in a variety of structural cable for the overhead, piping, buried and other laying way through the direct and branch connection.
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction.
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction.
Widely used in communications, network systems, CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
Weight: 3kg(Erect type)
Material: PC
Dimension (mm): 51*22CM (H*D)
Cables Entry & Exit:3Entry 3Exit
Cable Diameter (mm): Φ7-Φ25
Sealing Structure : Heat shrinkable Sealing
Max Capacity of Core:144 cores
Components: Seal tape 1PC, Insulation tape 1PC, Nylon tie 4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40 to +85
Atmospheric pressure: 70106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
Span-life: 30 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Material: PC
Dimension (mm): 51*22CM (H*D)
Cables Entry & Exit:3Entry 3Exit
Cable Diameter (mm): Φ7-Φ25
Sealing Structure : Heat shrinkable Sealing
Max Capacity of Core:144 cores
Components: Seal tape 1PC, Insulation tape 1PC, Nylon tie 4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40 to +85
Atmospheric pressure: 70106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
Span-life: 30 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Features
•Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
•Made of material with good capability of outdoor environment resistance and high durability
•Having reliable cable fixing and grounding facilities
•Using self-adhesive isolative tape and glue belt to seal
•To use rotating method to connect fiber organizer cassette result in easy installation
•Mechanical design suitable for installing, fiber splicing storage and cable connection
•Compact and tight
Main Technical Parameters for fiber optic splice closure
•Applicable environment temperatures: -40°C~+65°C
•Air pressure: 70~106Kpa
•Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
•Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)
•Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
•Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
•Life expectancy: 25 years
| Dimension ( mm ) | 460×180×108 |
| Weight ( Kg ) | 3.5 |
| Cable Diameter (mm) | Φ7-Φ18 |
| Cables Entry & Exit | 2 & 2 |
| Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
| Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
| Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
| Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
