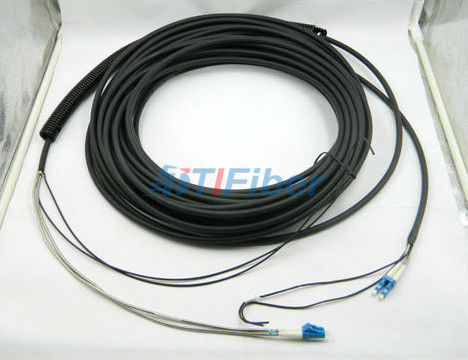

DLC PC Fiber Optic Patch Cord , Outdoor Protected Branch Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | FPC-PDLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , ESCROW, PayPal, Monthly settlement |
| Supply Ability: | 5000pcs/Day |
|
Detail Information |
|||
| Model Name: | FTTA Fiber Patch Cord | Connector Type: | PDLC, ODLC |
|---|---|---|---|
| Fiber Type: | SM, MM | Cable Diameter: | 7.0mm |
| Cabble Type: | GYFJH 2A1a(LSZH) | Fan-out: | 0.03/0.34m, 2.0mm |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Optical Cable Assembly,DLC/PC,DLC/PC,Multi-mode,GYFJH 2A1a(LSZH),100m,7.0mm,2 Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable
Description:
Best solution for Fiber To the Antenna; Soft, flexible, water blocked, UV resistant; Customized products accept.
Features:
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- Multimode and single mode
- Water proof, dust proof and corrosion resistant
- Expansion to RJ45 and Power possible
- Plug has tolerance free design, fully free floating on Z-axis
- No Cable buckling during or after installatoin
- Cost effective metal die cast bulkhead
- Field installable version available

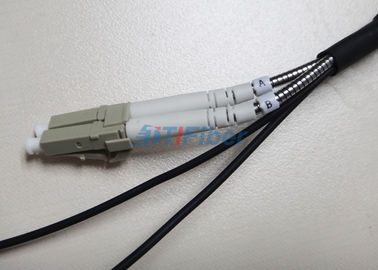

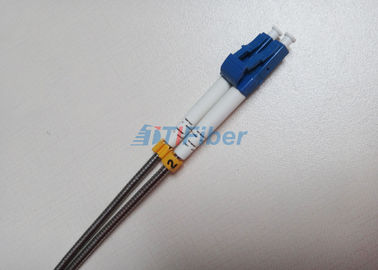

- Duplex LC interface
- Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
Applications:
- 3G 4G base station used
- Aerospace & Defence
- Equipment diagnosis
- FTTA ,FTTP, FTTX,WIMAX
- BBU, RRU, RRH, LTE
PDLC Outdoor Armoured Fiber Assembly Specifications
|
Item |
Data |
|
Insertion Loss |
≤0.3dB |
|
Mechanical life |
500cycles |
|
Working temperature |
-40°C~+70°C |
|
Storage temperature |
-40°C~+70°C |
|
Operating temperature |
-10°C~+50°C |
|
Protection Level |
IP67 |
|
Tensile Data |
Tensile between junction and fiber cable≥180N |
|
Out shell inflaming retarding |
UL94 V-0 |
|
Out shell Uvioresistant |
UL 746C |
|
Authentication |
Meet with RoHS |
GYFJH 7.0mm fiber cable Specification
|
Item |
Data |
|
fiber |
Single mode G.657A1 or G.657A2 |
|
Fiber diameter |
7.0mm |
|
Material & color for jacket |
LSZH black |
|
Tension member |
Aramid fiber |
|
Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
|
Tensile resistance(short term) |
500N(no breakage) |
|
Crush resistance(short term/long term) |
1000N/100mm |
|
inflaming retarding |
IEC 60332-3 |
|
Temperature |
-40~+70°C |
|
Uvioresistant |
PASS |
|
Authentication |
Meet with RoHS &UL |
Packing:

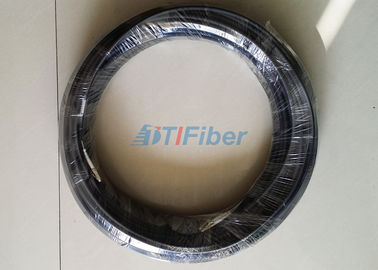

Cable roll with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
