Steel Strength Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXH White
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FOC-FTTH |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden drum with test report |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 100000M/Day |
|
Detail Information |
|||
| High Light: | GJXH Ftth Drop Fiber Optic Cable,G657A 2 Core Ftth Cable,GJXH 2 Core Ftth Cable |
||
|---|---|---|---|
Product Description
Steel strength fiber optic FTTH drop wire cable G657A SM 2 Fibers GJXH White

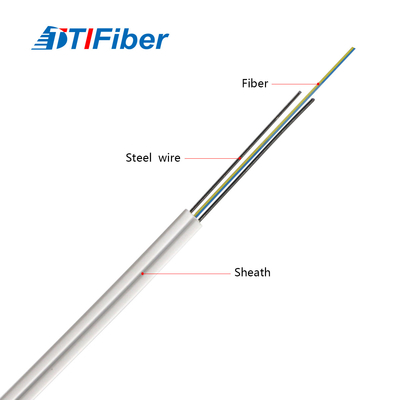

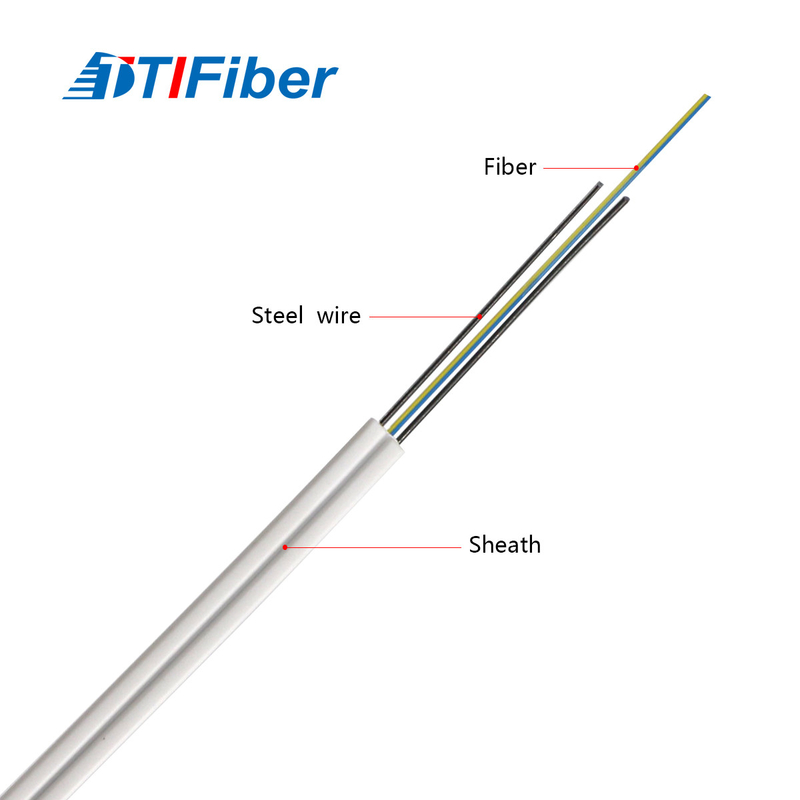

FTTH indoor butterfly cable is the optical communication unit in the center. Two parallel reinforcements (FRP/KFRP/steel wire) are placed on both sides. Finally, black or color low smoke halogen-free flame retardant sheath cable is extruded.
Quick Detail:
- Single mode, Multimode
- Fiber core: 2-12cores
- indoor and outdoor
- with FRP and steel
- White color and Black color
- LSZH Jacket
Features:
- Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards.
- Low insertion loss and hight return loss.
- With ceramic fettules.
- PVC&LSZH cable option.
- Optical performance 100% factory test.
- Excellent repeatability and changeability
- Simplex and duplex available.
Application:
- All types of fiber cables with different structures
- High performance optical network operating
- High speed optical routes in buildings (FTTx)
- Application in L band
Cable Construction Parameter:
| Fiber Core | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×5.0 | 2.0×5.0 | 2.0×5.3 | 2.0×5.3 |
| Cable Weight(kg/km) | 9 | 10 | 11 | 12 |
Mechanical & Environmental Performance:
| Max Load (N) | Long Term | 60 | 60 | 60 | 60 |
| Short Term | 120 | 120 | 120 | 120 | |
| Bending Radius(CM) | Dynamic | 30 | |||
| Static | 15 | ||||
