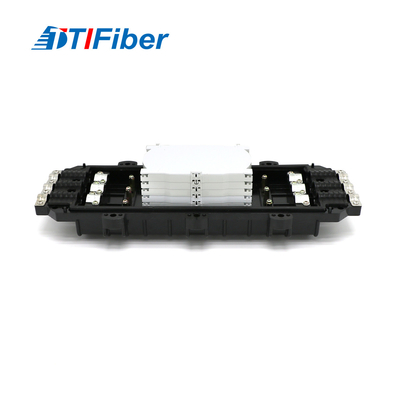

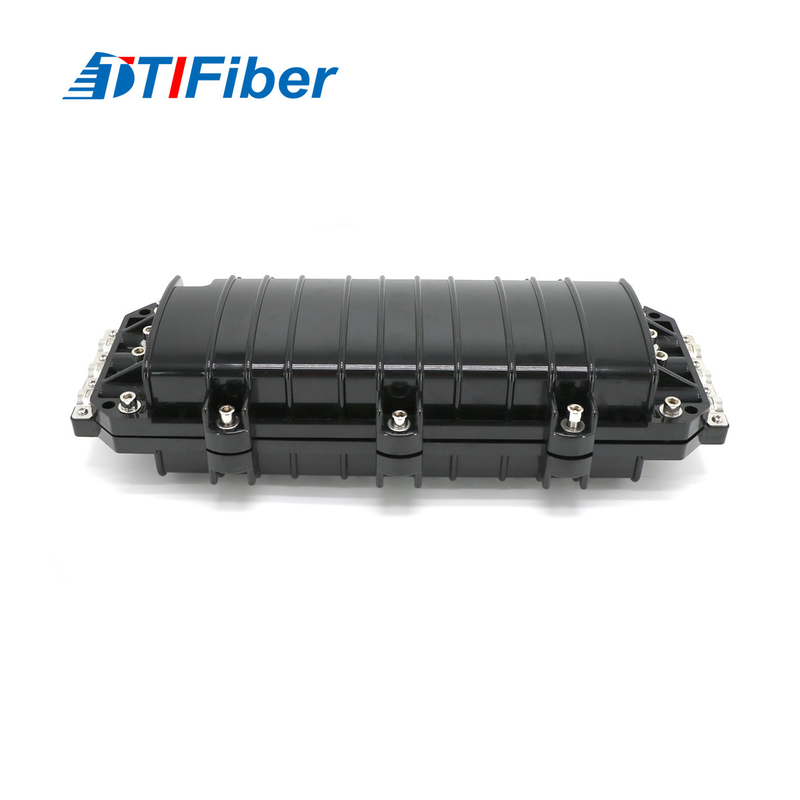

FTTH FTTX Fiber Optic Splice Closure 144 Core Horizontal Type
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | ROHS |
| Model Number: | FOSC-H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Piece |
|---|---|
| Price: | USD |
| Packaging Details: | PE Boxes |
| Delivery Time: | 2-3 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, , ,Payapl |
| Supply Ability: | 1000 Pieces /Day |
|
Detail Information |
|||
| Name: | Fiber Optic Splice Closure | Type: | Horizonal |
|---|---|---|---|
| Colour: | Black | Material: | PC |
| Weight: | 1.6kg-5kg | Ports: | 144 |
| Certication: | ROHS | Application: | Network Equipment |
| High Light: | 144 Core Fiber Optic Splice Closure,Horizontal Type Fiber Optic Splice Closure |
||
Product Description
FTTH FTTX Box Enclosure Closure Joint 144 Core Horizontal type Fiber Optic Splice Closure
Specification:
Suitable for cable whose diameter is within 22mm.It can be used in aerial, duct and direct buried application as well as the all-plastic local cable connection.
Mainly in a variety of structural cable for the overhead, piping, buried and other laying way through the direct and branch connection.
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction. Widely used in communications, network systems, CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction. Widely used in communications, network systems, CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
Weight: 3kg(Erect type)
Material: PC
Dimension (mm): 51*22CM (H*D)
Cables Entry & Exit:3Entry 3Exit
Cable Diameter (mm): Φ7-Φ25
Sealing Structure : Heat shrinkable Sealing
Max Capacity of Core:144 cores
Components: Seal tape 1PC, Insulation tape 1PC, Nylon tie 4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40 to +85
Atmospheric pressure: 70106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
Span-life: 30 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Material: PC
Dimension (mm): 51*22CM (H*D)
Cables Entry & Exit:3Entry 3Exit
Cable Diameter (mm): Φ7-Φ25
Sealing Structure : Heat shrinkable Sealing
Max Capacity of Core:144 cores
Components: Seal tape 1PC, Insulation tape 1PC, Nylon tie 4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40 to +85
Atmospheric pressure: 70106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
Span-life: 30 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Uses and properties
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable
