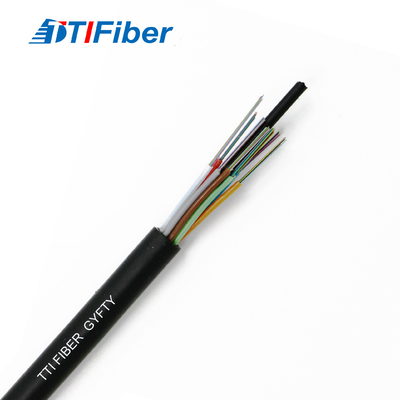

Aerial Ftth Frp Gyfty 2 4 8 12 24 Cores G652d Fiber Optic Cable Single Mode
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | CE RoHS ISO9001 |
| Model Number: | GYFTY |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-7 working days after received payment |
| Supply Ability: | 10000 meters per week |
|
Detail Information |
|||
| Material: | PE | Type: | Singlemode |
|---|---|---|---|
| Color: | Blank | Operating Tempeature: | -40℃~+70℃ |
| Package: | Wooden Drum | Length: | Customized |
| High Light: | Single Mode G652d Fiber Cable,24 Cores G652d Fiber Optic Cable,Aerial G652d Fiber Optic Cable |
||
Product Description
Outdoor Use Single Mode Aerial Ftth Frp Gyfty 2 4 8 12 24 Cores G652d Fiber Optic Cable
Outdoor Single Mode Aerial Fiber Optic Cable Ftth Frp Gyfty 2 4 8 12 24 Cores G652d Fiber Optic Cable
1. Description:

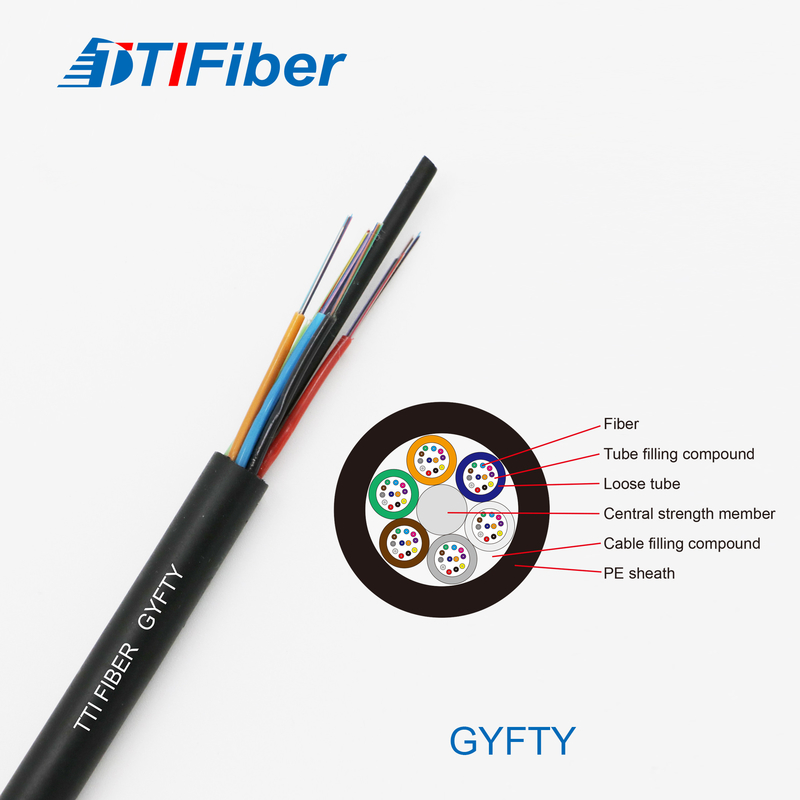

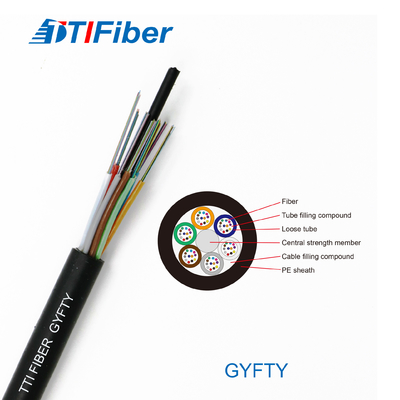

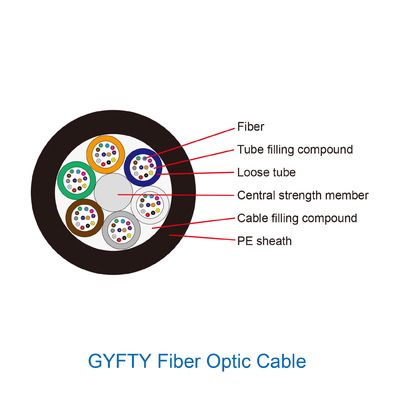

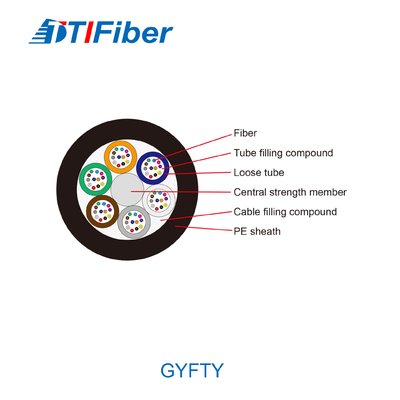

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
2. Characteristics:
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
3. Standards:
GYFTY cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.
Storage/Operating Temperature : -40℃ to + 70℃
| Technical Parameters: | ||||||||
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/ Dynamic | ||||||
| N | N/100mm | mm | ||||||
| GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 6 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 5 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 4 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 | 3 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 2 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 1 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-38~42 | 38~42 | 7 | 0 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-44~48 | 44~48 | 4 | 2 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-50~60 | 50~60 | 5 | 1 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-62~72 | 62~72 | 6 | 0 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 7 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 6 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 5 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 | 4 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 3 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 2 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-38~42 | 38~42 | 7 | 1 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-44~48 | 44~48 | 8 | 0 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-50~60 | 50~60 | 5 | 2 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-62~72 | 62~72 | 6 | 1 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-74~84 | 74~84 | 7 | 0 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
Product Display:
4. Features
1). Low Insertion loss
2). High return loss
3). Good Repeatability
4). Good Interchange
5). Excellent Environmental Adaptability
5. Application
1). Communication rooms
2). FTTH (Fiber to The Home)
3). LAN (Local Area Network)
4). FOS (fiber optic sensor)
5). Fiber Optic Communication System
6). Optical fiber connected and transmitted equipment
7). Defense combat readiness
