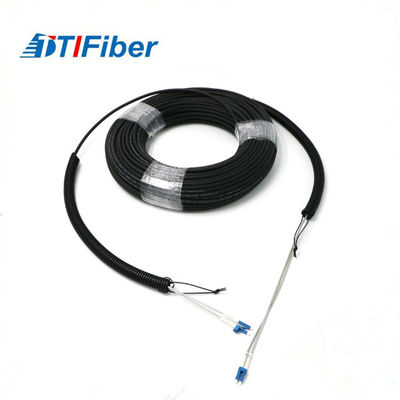

LSZH FTTA Outdoor Fiber Patch Cable Waterproof Jumper
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | outdoor fiber optic patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE or wooden drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, ,Paypal |
| Supply Ability: | 200pcs/day |
|
Detail Information |
|||
| Product Name: | Fiber Optic Patch Cord | Connector Type: | LC |
|---|---|---|---|
| Ferrule End Face: | UPC | Color: | Black |
| Core Type: | Singlemode | Cable Quantity: | Duplex |
| Cable Diameter: | 2.0mm | Cable Length: | Customized |
| Cable Type: | LSZH | Package: | PE Bag Or Wooden Drum |
| Factory: | Yes | Warranty: | 5 Years |
| High Light: | Waterproof Jumper Ftta Patch Cord,FTTA Outdoor Fiber Patch Cable,LSZH Outdoor Fiber Patch Cable |
||
Product Description
FTTA Fiber Optic Outdoor Patch waterproof jumper
CPRI fiber patch cable for the new generation wireless base stations. Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G,and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becomingthe standard connectorinterface.
Feasure:
Easily add/install jumper cables for a future expansion
Factory-assembled cables for a fast on-site installation IP67 water and dust protection
Flexibility with small bending radius and excellent cable routing properties
Equipped with customer specific power and fiber-optic connectors
Application:
Multi-purpose Outdoor For connection between distribution box and RRH Deployment in Remote Radio Head cell tower applications
Specification:
| Item | Unit | FC,SC,ST/PC | FC,SC,ST/UPC | FC,SC,ST/APC |
| Insertion Loss | dB | ≤0.20 | ≤0.20 | ≤0.30 |
| Repeatability | dB | ≤0.10 | ||
| Exchangeability | dB | ≤0.20 | ||
| Return Loss | dB | ≥45(SM) | ≥50(SM) | ≥60(SM) |
| Fiber Type | Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM) | |||
| Operating Temperature | °C | -40~+70 | ||
| Storage Temperature | °C | -40~+70 | ||
| Durability | time | >1000 times | ||
