Product Details:

Place of Origin: China Mainland
Brand Name: TTI
Certification: ROHS, SGS
Model Number: FPC-MPO

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1pcs/PE bag
Delivery Time: in 2-4 days
Payment Terms: T/T, , ESCROW, PayPal, Monthly settlement
Supply Ability: 7000pcs/Day
Get Best Price Contact Now

Detail Information

High Light:

fiber optical cable

,

fiber optic network cable

Product Description

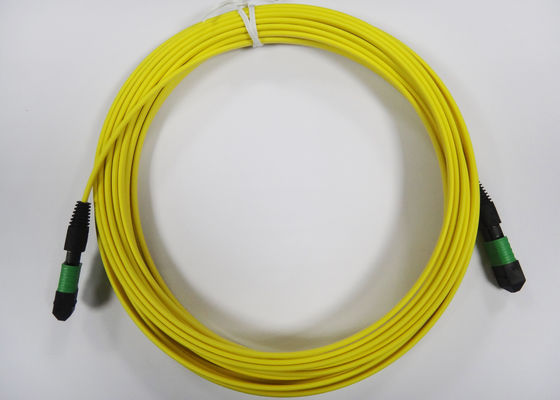

Flat / Round MPO / MTP fiber optic patch cables for 12core Ribbon Fiber Cable

Quick Details:

  1. Name: MPO fiber patch cord
  2. Ferrule End-face: PC, UPC, APC
  3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
  4. Cable Type: Ribbon fiber optic cable, Flat and Round
  5. Cable Jacket: LSZH, OFNR, OFNP, PVC
  6. Cable core: 4core, 6core, 8core, 12core, 24core


Desciption:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.

Features:

  1. Single mode and Multimode (Flat/Round) available
  2. Fiber in single connector: 4, 8, 12 24
  3. Insert/Pull latching connector
  4. High reflection loss with APC
  5. Comply with Telcordia GR-1435-CORE specification and Rosh standard
  6. High fiber density (maximum 24 fibers for Multimode)


Applications:

  1. Video transmission , Data transmission
  2. Active Device Termination
  3. Premise Installations
  4. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
  5. Telecommunication and Data processing Networks


Specification:

Fiber Connector

Connector TypeFiber MPO/MTP (non-pinned)
Ferrule of end-faceUPC(MM); APC(SM)
Housing ColorMM (Beige), MM Elite (Aqua), SM (Yellow/Green)
Insertion Loss, Typical≤ 0.10 dB
Insertion loss, max.≤ 0.35 dB
Durability(500 Matings)< 0.2dB


Fiber Cable

Fiber TypeOS2, OM1, OM2, OM3, OM4
Fiber Count12, 24, 48, 72, 96, 144 cores
Cable Outer diameter12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket ColorOS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket materialLSZH,OFNP,OFNR
Tensile strength500N
Operating Temperature-20 ~ +60°C
Storage Temperature-40 ~ +70°C


Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
