OM3 / OM4 MPO Fiber Optic Patch Cord for Active Device Termination
Product Details:
| Place of Origin: | China Mainland |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FPC-MPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , ESCROW, PayPal, Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| High Light: | multimode fiber patch cord,fiber optical cable |
||
|---|---|---|---|
Product Description

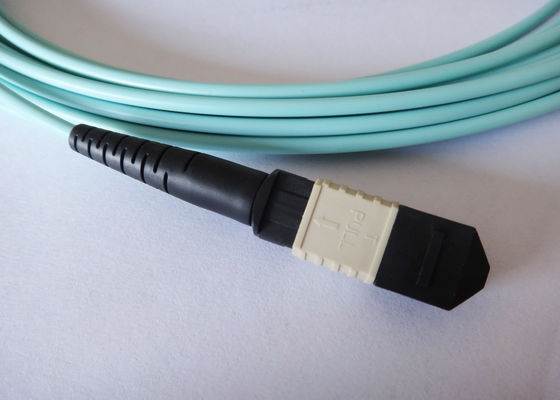

OM3 / OM4 MPO Fiber Optic Patch Cord for Active Device Termination
Quick Details:
- Name: MPO fiber patch cord
- Ferrule End-face: PC, UPC, APC
- Mode: OS1, OS2, OM1, OM2, OM3, OM4
- Cable core: 4core, 6core, 8core, 12core, 24core
- Cable Type: 12 single fiber, Flat, Round
- Adopt MPO/MTP single 12fiber pull/push connectors
Desciption:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features:
- Single mode and Multimode (Flat/Round) available
- High fiber density (maximum 24 fibers)
- Fiber in single connector: 4, 8, 12 24
- Insert/Pull latching connector
- High reflection loss with APC
small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Applications:
- FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
- Active Device Termination
- Premise Installations
- Telecommunication and Data processing Networks
Video transmission , Data transmission
Specification:
Fiber Connector
| Connector Type | Fiber MPO/MTP (non-pinned) |
| Ferrule of end-face | UPC(MM); APC(SM) |
| Housing Color | MM (Beige), MM Elite (Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12, 24, 48, 72, 96, 144 cores |
| Cable Outer diameter | 12cores:4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Color | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
