Single mode Angle Step Optic Ferrule with Flange , High Stability
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FOF-SU |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1000PCS/Plastic box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 30000PCS/Day |
|
Detail Information |
|||
| High Light: | optical fiber ferrule,stainless steel ferrule |
||
|---|---|---|---|
Product Description

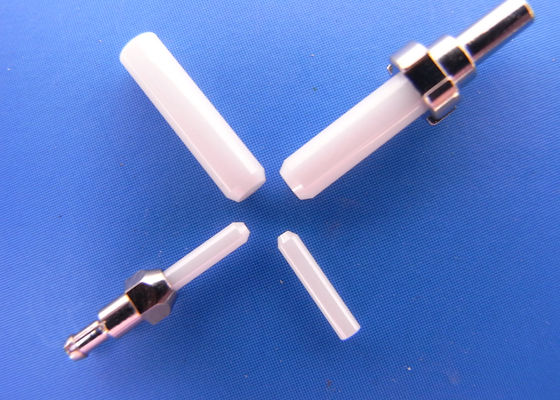

Single mode Angle Step Optic Ferrule with Flange , High Stability
Quick Detail:
- Name: Optic Fiber Ferrule
- Type: Standard, Angle, Step
- Material: Ceramic/Zirconia, Metal
- Mode: Single mode
- Ferrule End-face: APC
- Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)
Description:
Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord, ceramic ferrules are made by ZrO2, with inner diameter 0.125mm, length range from 3mm to 15mm depends on different types of optical connectors.
Features:
- Good the coaxial tolerance and size accuracy
- Properties of high intensity, the wear resistance, high anti-aging
- Low insertion loss, high frequency of insert
- Few void/porosity for stable/reliable polishing
Application:
- Telecommunication
-
Military data network communication
- CATV LAN & WAN
-
Data network communication
Specification:
| Applications | PC/UPC | APC | |
| SM Fiber | MM Fiber | SM Fiber | |
| Outer Diameter | Ø2.499±0.0005 |
Ø2.499±0.0001 -0.0023 |
Ø2.499±0.0005 |
| Concentricity | ≤ 1.0 | ≤ 3.0 | ≤ 1.0 |
| Hole Diameter | Ø125.0, Ø125.5,Ø126.0, +0.001 |
Ø126.0, Ø127.0+0.001 |
Ø125.0,Ø125.5,Ø126.0, +0.001 |
| Material | All Zirconia | ||
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
