Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: FOF-SU

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1000PCS/Plastic box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, Monthly settlement
Supply Ability: 30000PCS/Day
Get Best Price Contact Now

Detail Information

High Light:

ceramic ferrule

,

stainless steel ferrule

Product Description

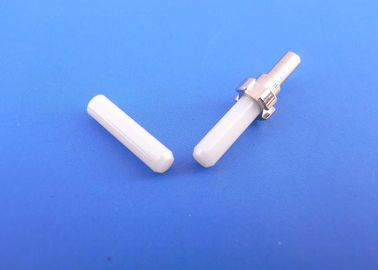

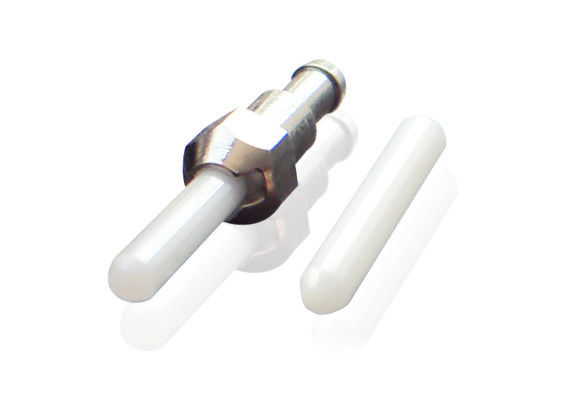

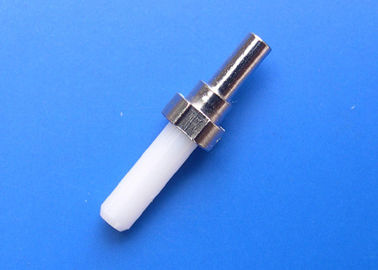

UPC Fiber Optic Ferrule for Data network communication , Standard / Angle / Step



UPC Fiber Optic Ferrule for Data network communication , Standard / Angle / Step





Quick Detail:

  1. Name: Optic Fiber Ferrule
  2. Mode: SM MM
  3. Ferrule End-face: UPC
  4. Type: Standard, Angle, Step
  5. Material: Ceramic/Zirconia, Metal
  6. Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)



Description:



Fiber optic ferrule keeps the fibers accurately aligned within the connector.





Features:

  1. Good exchangeability
  2. Excellent directivity
  3. High Stability
  4. Favorable Commonality
  5. High precision configuration
  6. material origin: Japan



Application:

  1. Telecommunication
  2. CATV LAN & WAN
  3. Data network communication

  4. Military data network communication



Specification:



Applications PC/UPC APC
SM Fiber MM Fiber SM Fiber
Outer Diameter Ø2.499±0.0005

Ø2.499±0.0001

-0.0023

Ø2.499±0.0005
Concentricity ≤ 1.0 ≤ 3.0 ≤ 1.0
Hole Diameter Ø125.0,
Ø125.5,Ø126.0, +0.001
Ø126.0,
Ø127.0+0.001
Ø125.0,Ø125.5,Ø126.0, +0.001
Material All Zirconia































Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
