ODF 24 Core Fiber Sliding Type Optical Fiber Termination Box For Rack Mount
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | RMF-1U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 5pcs/Case |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 5000 PCS/Week |
|
Detail Information |
|||
| Material: | Steel Or Aluminum | External Size: | 1U,2U,3U,4U |
|---|---|---|---|
| Dimension: | 19 Inch 1U 2U Patch Panel | Type: | Slidable Or Fixed |
| Color: | White , Black ,grey | Certification: | ISO9001,ROHS,CE |
| Highlight: | optical terminal box,fiber optic termination box |
||
Product Description

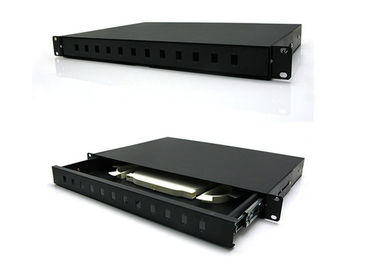

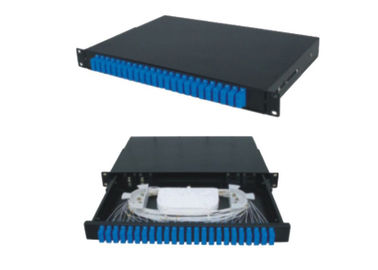

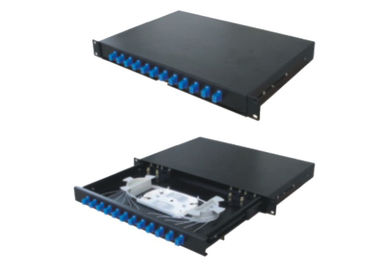

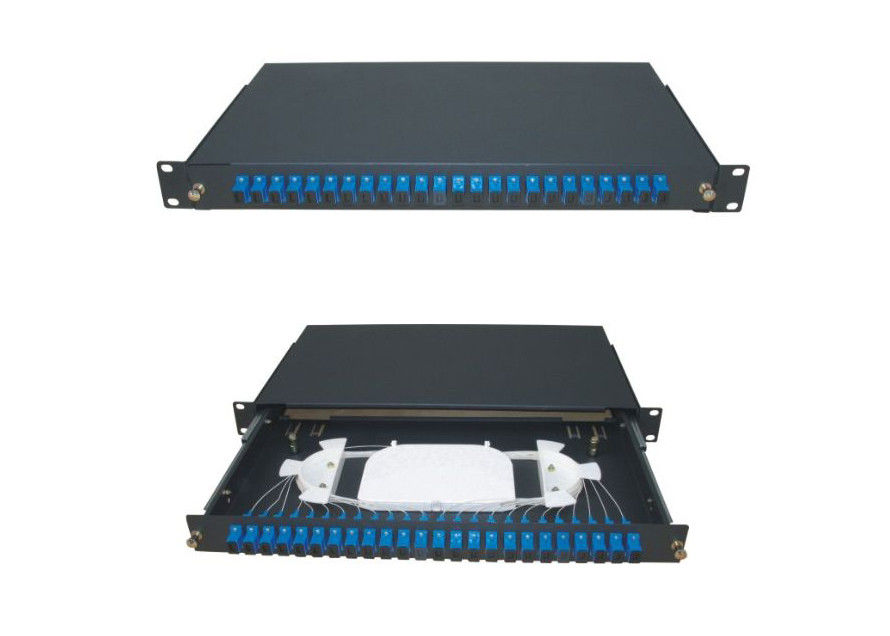

Sliding Rack Mounted Fiber Optic Terminal Box for Optical network
Quick Detail:
- Name: 1U Fiber Terminal Box
- Suitable Adapter: FC, SC, ST, LC
- Cable Diameter: 5~10mm
- Cable entry port: 4 ports
- No. of adapter ports: 12, 24, 48, 72, 96
- Structure: 19 inch, Rack mounted
- Height: 1U, 2U, 4U
Features:
- Sliding structure, easy for operation
- 19'' standard structure, rack mounting
- Applicable in the termination
- Applicable in the branch connection of optical cable termination
Application:
- Local area networks
- Wide area networks
- Fiber to the home(FTTB)
- Optical network
Specification:
| Type | RMS-1U | RMF-2U | RMS-4U |
| Size(mm) L*W*H |
430*3000*1U | 430*300*2U | 430*300*4U |
| Max Capacity (Core) | 48 | 96 | 192 |
| Outer Carton Dimension(mm) | 485*420*350/5pcs | 500*355*550/4pcs | 500*350*540/1PCS |
| Outer Carton Weight(Kg) | 27.5/5pcs | 26.3/5pcs | 18.9/PCS |
Technical Data:
| Model | RMF-1U |
| Size(mm): L*W*H | 430*300*1U |
| Max capacity of splice tray: | 24core(1U) |
| Optical fiber winding radius: | ≥40mm |
| Fiber length left in tray: | none |
| Fiber length left in tray: | ≥1.6m |
| Fiber capacity: | 48 cores |
| Working temperature: | - 400°C ~ + 600°C |
| Lateral pressure-resistance: | 500N |
| Shock-resistance: | 750N |
