Rack mounted Fiber Optic Terminal Box with SC Adapters / Pigtails

Rack mounted Fiber Optic Terminal Box with SC Adapters / Pigtails

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: TTI/JJ-1U

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: 5pcs/Case
Delivery Time: 3-5 days
Payment Terms: T/T, , PayPal, Monthly settlement
Supply Ability: 5000 PCS/Week
Get Best Price Contact Now

Detail Information

High Light:

optical terminal box

,

fiber optic termination box

Product Description



Rack mounted Fiber Optic Terminal Box with SC Adapters / Pigtails





Description:



Rack Mounted Terminal Box can be applied in the branch connection of fiber termination, working as distribution box. Its front mark on the plates is easy for identification and operation.





Quick Detail:

  1. Name: 12 port SC Terminal Box
  2. No. of adapter ports: 12, 24, 48, 72, 96
  3. Structure: 19 inch, Rack mounted
  4. Height: 1U, 2U, 3U, 4U
  5. Box type: Fixed type, Sliding type, Dummy drawer type
  6. Suitable Adapter: FC, SC, ST, LC



Features:

  1. 19" standard slide-out design, easy and convenient on assembling
  2. Cabinet surface covered with electrostatic powder coating, luxury and beautiful
  3. Bend radius of optical fiber more than 40mm
  4. Easy to access the back and splice tray
  5. Easy to repeated opening and using
  6. Could deploy valve and Grounding device
  7. Apply for SC/ST/FC/LC pigtail and adapter



Application:

  1. Fiber to home
  2. Co-location/customer premise
  3. LAN/WAN
  4. Telecommunication networks
  5. CATV networks



Specification:



Type RMF-1U RMT-2U
Size(mm)
L*W*H
480*250*1U 480*250*2U
Max Capacity (Core) 24 48
Outer Carton Dimension(mm) 485*425*305/5pcs 485*675*305/5pcs
Outer Carton Volume(m3) 0.063 0.1
Outer Carton Weight(Kg) 14.2/5pcs 21/5pcs





Technical Data:



Model RMF-1U
Size(mm): L*W*H 430*250*1U
Max capacity: 24core(1U)
Optical fiber winding radius: ≥40mm
Fiber length left in tray: none
Fiber length left in tray: ≥1.6m
Fiber capacity: 48 cores
Working temperature: - 400°C ~ + 600°C
Lateral pressure-resistance: 500N
Shock-resistance: 750N





Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

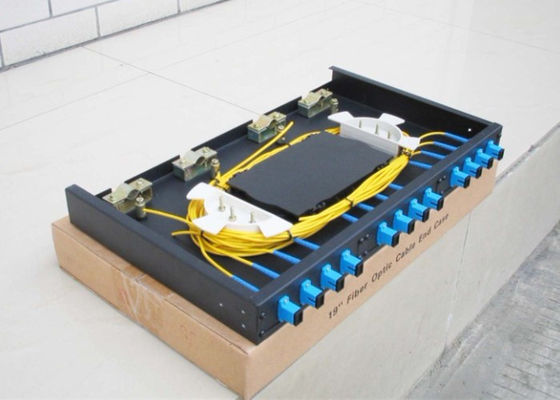

Rack mounted Fiber Optic Terminal Box with SC Adapters / Pigtails 0
