12 port customer premise Fixed Rack Mounted Optic Terminal Box with FC Port
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | TTI/JJ-1U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 5pcs/Case |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 5000 PCS/Week |
|
Detail Information |
|||
| Highlight: | optical terminal box,fiber optic termination box |
||
|---|---|---|---|
Product Description

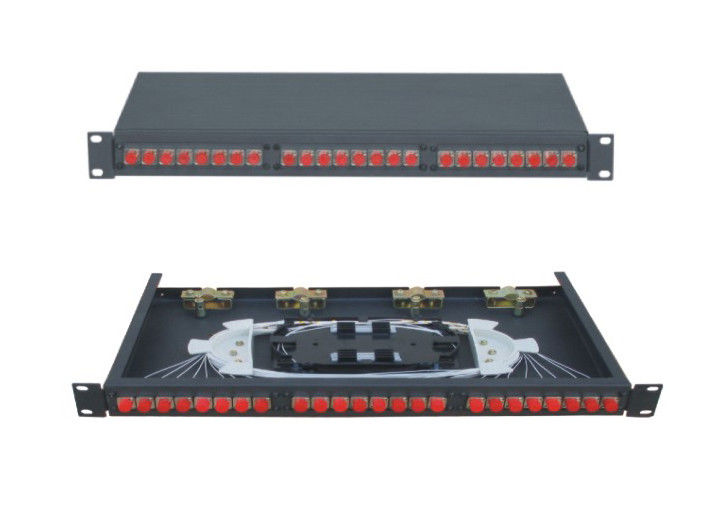

12 port customer premise Fixed Rack Mounted Optic Terminal Box with FC Port
Description:
Rack Mounted Terminal Box can be applied in the branch connection of fiber termination, working as distribution box. Its front mark on the plates is easy for identification and operation.
Quick Detail:
- Name: 12 port FC Fiber Optic Terminal Box
- Cable Diameter: 5~10mm
- Cable entry port: 4 ports
- No. of adapter ports: 12, 24, 48, 72, 96
- Structure: 19 inch, Rack mounted
- Height: 1U, 2U, 3U, 4U
Features:
- 19" standard slide-out design, easy and convenient on assembling
- Cabinet surface covered with electrostatic powder coating, luxury and beautiful
- Bend radius of optical fiber more than 40mm
- Easy to access the back and splice tray
Application:
- Telecommunication networks
- CATV networks
- Fiber to home
- Co-location/customer premise
- LAN/WAN
Specification:
| Type | RMF-1U | RMT-2U |
| Size(mm) L*W*H |
480*250*1U | 480*250*2U |
| Max Capacity (Core) | 24 | 48 |
| Outer Carton Dimension(mm) | 485*425*305/5pcs | 485*675*305/5pcs |
| Outer Carton Volume(m3) | 0.063 | 0.1 |
| Outer Carton Weight(Kg) | 14.2/5pcs | 21/5pcs |
Technical Data:
| Model | RMF-1U |
| Size(mm): L*W*H | 430*250*1U |
| Max capacity: | 24core(1U) |
| Optical fiber winding radius: | ≥40mm |
| Fiber length left in tray: | none |
| Fiber length left in tray: | ≥1.6m |
| Fiber capacity: | 48 cores |
| Working temperature: | - 400°C ~ + 600°C |
| Lateral pressure-resistance: | 500N |
| Shock-resistance: | 750N |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
