Indoor Outdoor Non Metallic SM G652D Fiber Optic Cable Rat Proof For FTTH

Indoor Outdoor Non Metallic SM G652D Fiber Optic Cable Rat Proof For FTTH

Product Details:

Place of Origin: China
Brand Name: TTI
Model Number: Indoor Outdoor Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: D/A, D/P, T/T, , ,
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information

Product Name: Indoor Outdoor Fiber Optical Cable Application: Aerial,direct Buried,duct
Color: Black Material: PE/LSZH
Fiber Type: G652D Fiber Count: 1-24 Cores
Wavelength: 1310nm Or 1550nm Use: FTTX
Length: Customizted Quality Control: 100% Test Before Shipping
Package: Wooden Ram
High Light:

SM G652D Fiber Optic Cable

,

Non Metallic G652D Fiber Optic Cable

,

Rat Proof G652D Fiber Cable

Product Description

FTTH Indoor Outdoor Non-metallic SM G652D Ratproof Fiber Optic Cable





1. Specification:



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

steel tape and the loose tube water-blocking material is applied to keep the cable compact

and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

The cable is completed with PE sheath.





G652D G655 50/125μm 62.5/125μm
Attenuation(+20deg C) @850nm     ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm     ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM --
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km
Bandwidth(Class A) @850nm     ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm     ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm



2. Feature:



(1) Good mechanical and temperature performance

(2) High strength loose tube that is hydrolysis resistant

(3) Special tube filling compound ensure a critical protection of fiber

(4) Two parallel FRPs ensure tensile strength

(5) PE sheath protects cable from ultraviolet radiation

(6) Small diameter, light weight and friendly installation

(7) Long delivery length





3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment




4. Product Picture:

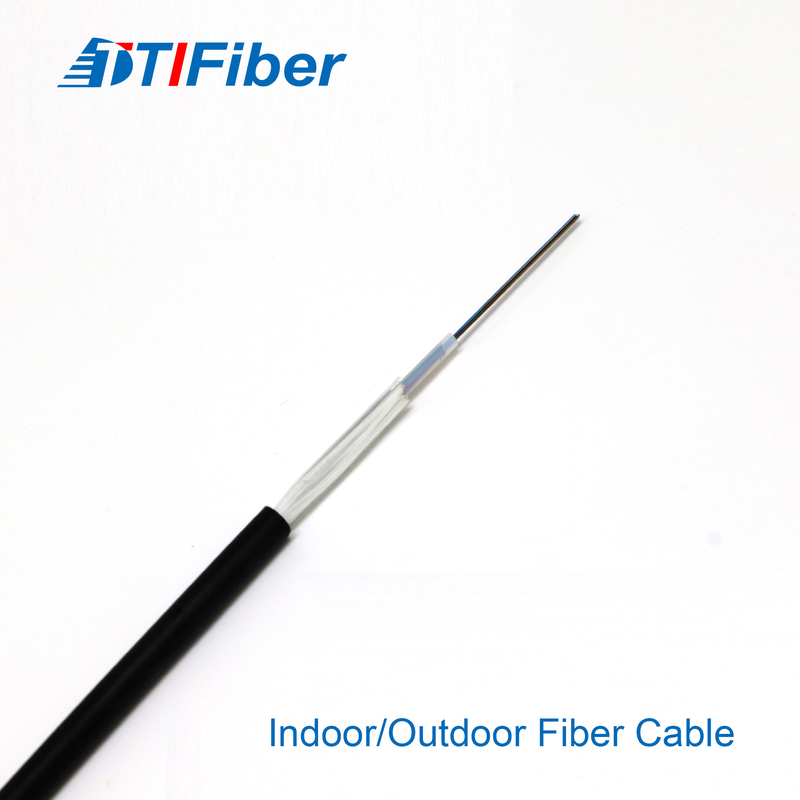

Indoor Outdoor Non Metallic SM G652D Fiber Optic Cable Rat Proof For FTTH 0

Indoor Outdoor Non Metallic SM G652D Fiber Optic Cable Rat Proof For FTTH 1







Indoor Outdoor Non Metallic SM G652D Fiber Optic Cable Rat Proof For FTTH 2













5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
