2in , 2out 24 core UV protection optical splice closure for FTTH Solutions
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FSC-I01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 8PCS/CTN |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 5000 PCS/Week |
|
Detail Information |
|||
| High Light: | fibre optic splice closure,fiber optic joint closure |
||
|---|---|---|---|
Product Description

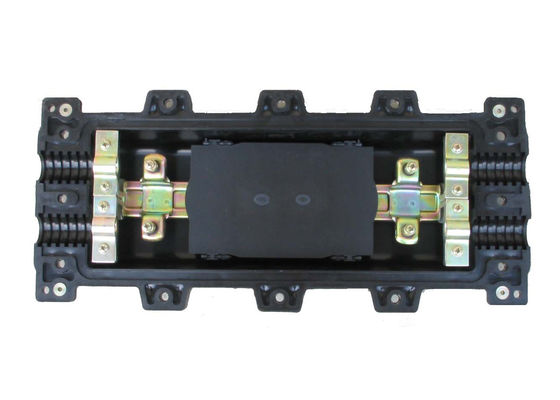

2in , 2out 24 core UV protection optical splice closure for FTTH Solutions
Quick Detail:
- Name: in line type 24core Fiber Splice Closure
- Sealing structure:Screw Thread mechanical seal
- Cable Diameter: 10-17mm
- Cable entry port: 4 ports
- Capacity of fibers: 96 cores(single fiber)
- Application: Aeria, Direct buried
Features:
- Earthling deriving device can be installed on the house of FOSC
- Can be installed in aerial locations, ducted applications, direct buried, manholes.
- Small volume but large capacity.
- Material mixed chemical agent to resist corrosion and aging and also provide UV protection.
Application:
- Telecommunication networks
- CATV networks
- Local area networks
- Aerial –hanger, Wall-mounting, Directly buried
- Widely used in FTTH access network
Specification:
| Model | FSC-I03 |
| Size(mm) L*W*H |
435*190*80 |
| Cable diameter(mm) | 1022 |
| Cable ports | 2in, 2out |
| Capacity of splice tray | 24(single fiber) |
| Max QTY of splice tray | 8 |
| Max Capacity (Core) | 192(Single) |
| Sealing Structure | Sticky |
| Outer carton weight(kg) | 22.4/8pcs |
| Outer carton dimension(mm) | 515*425*575 |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
