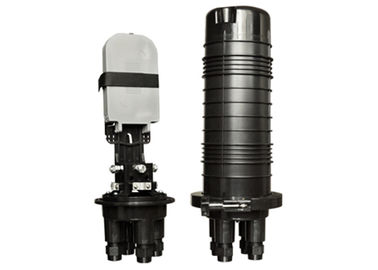

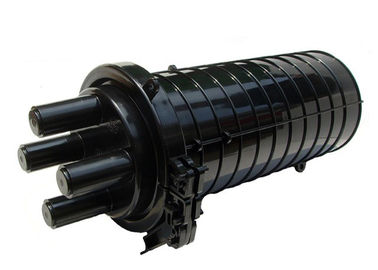

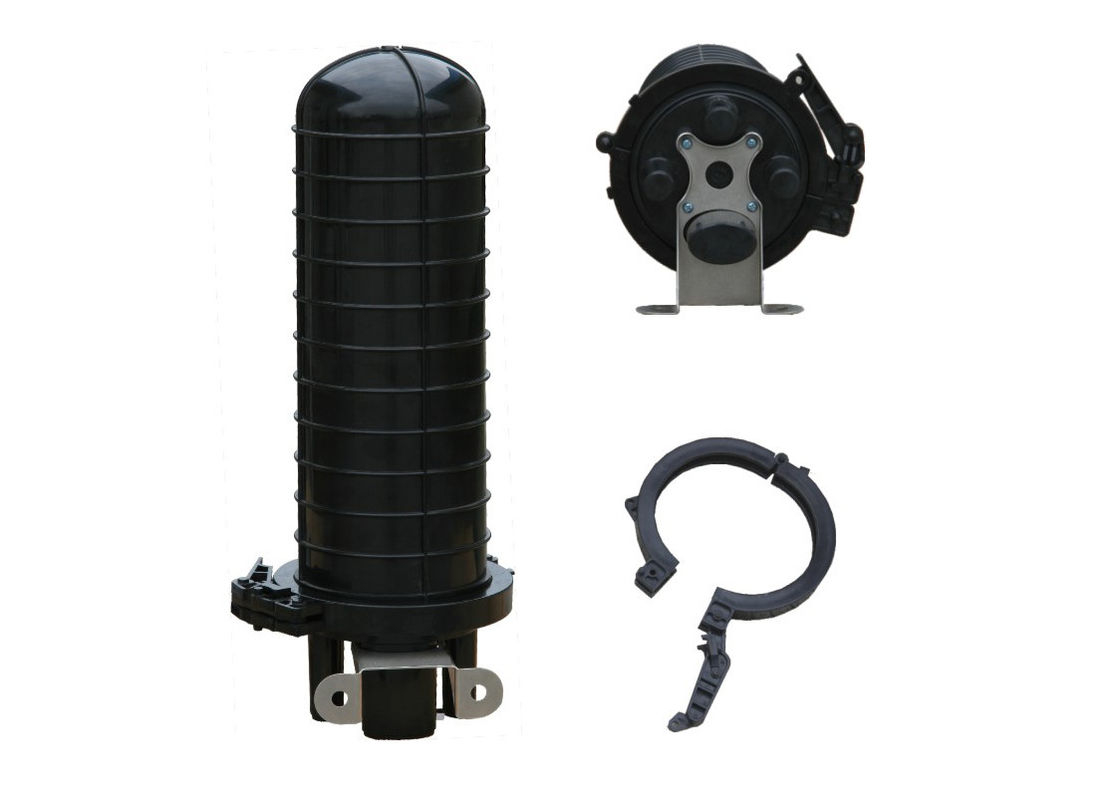

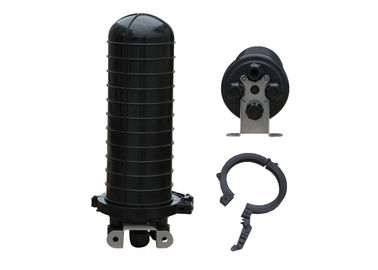

Aerial Fiber Optic Splice Closure with Heat Shrinkable Sealing Structure
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FSC-I01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 6 PCS/CTN |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 5000 PCS/Week |
|
Detail Information |
|||
| High Light: | optical splice closure,fibre optic splice closure |
||
|---|---|---|---|
Product Description
Aerial Fiber Optic Splice Closure with Heat Shrinkable Sealing Structure
Quick Detail:
- Name: 24core Fiber Splice Closure
- Sealing structure:Screw Thread mechanical seal
- Cable Diameter: 7-22mm
- Capacity of fibers: 96 cores(single fiber)
- Application: Aeria, Direct buried
- Cable entry port: 4 ports
Features:
- Slide-in-lock design ,over 90º opening angle tray
- Earthling deriving device can be installed on the house of FOSC
- Elastic integrated seal fitting
- Advanced internal structure design
- Easy to re-enter, it never requires re-entry kits
Application:
- Local area networks
- Aerial –hanger, Wall-mounting, Directly buried
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
Specification:
| Model | FSC-D014 |
| Size(mm) L*W*H |
190*435 |
| Cable diameter(mm) | 7-22 |
| Cable ports | 2in, 2out |
| Capacity of splice tray | 24(single fiber) |
| Max QTY of splice tray | 4 |
| Max Capacity (Core) | 96(Single) |
| Sealing Structure | screw thread mechanical seal |
| Outer carton weight(kg) | 15/6pcs |
| Outer carton dimension(mm) | 550*450*480 |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
