Product Details:

Place of Origin: China Mainland
Brand Name: TTI
Certification: ROHS, SGS

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1pcs/PE bag
Delivery Time: in 2-4 days
Payment Terms: T/T, , ESCROW, PayPal, Monthly settlement
Supply Ability: 7000pcs/Day
Get Best Price Contact Now

Detail Information

High Light:

multimode fiber patch cord

,

fiber optic network cable

Product Description

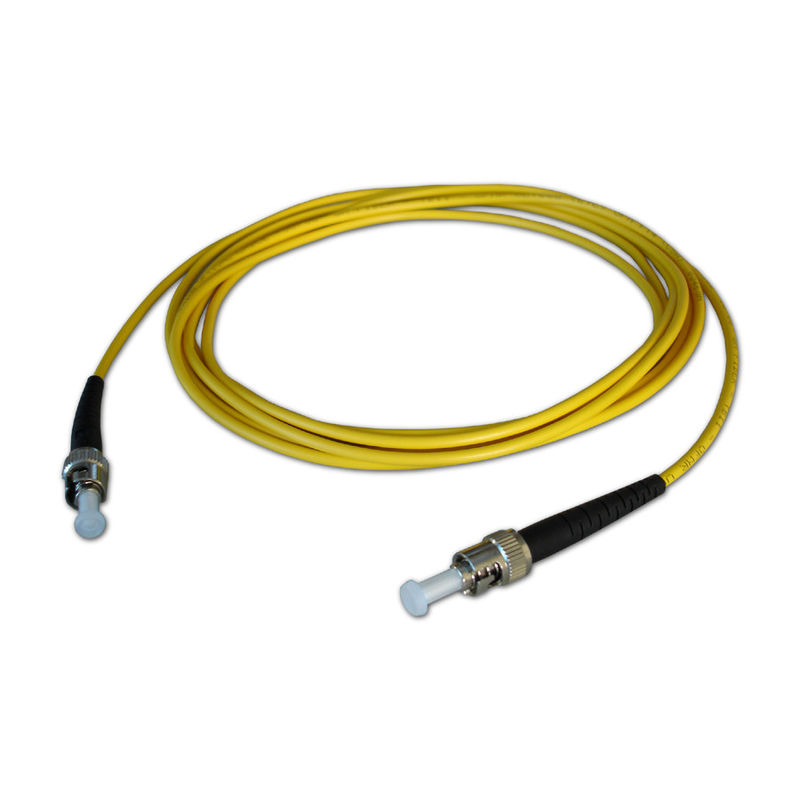

 ST SM Simplex Fiber Patch Cord Telecom Class and Polishing A







Quick Details:

  1. Type: ST/UPC-ST/UPC-SM-DX-3.0mm-3M
  2. Mode: Single mode and Multimode
  3. Ferrule End-face: PC, UPC, APC
  4. Cable core: Simplex, Duplex
  5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  6. Cable length: 1m, 2m, 3m….customized



Features:

  1. Good interchange
  2. Good repeatability
  3. Low insertion loss, high return loss
  4. Clean and Scratch-Free End Face
  5. High Quality 100% Factory Tested
  6. 3D fiber interferometer is available



Applications:

  1. FTTH application
  2. Premise installations
  3. Data processing networks
  4. Wide Area Networks (WANs)
  5. Industrial ,mechanical and military



Specification:



Item Single Mode Multi Mode
Insertion Loss <= 0.2dB <= 0.3bB
Return Loss PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test 1000 times
Repeatability <=0.1
Tensile strength ≥10KG
Operating Temperature -40°C ~ +85°C
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um







Packing:



One piece per PE bag with stick label (we could add customer's logo in the label.)







Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
