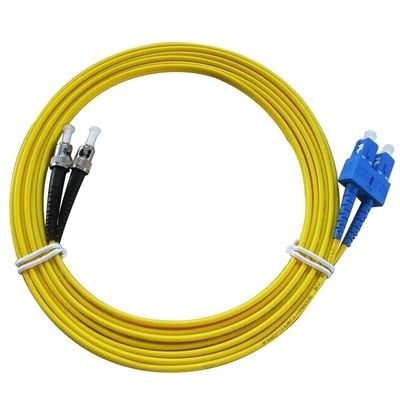

Telecommunication SC Duplex fiber optical patch cord with UPC / APC Polishing
Product Details:
| Place of Origin: | China Mainland |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , ESCROW, PayPal, Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
|---|---|---|---|
Product Description
Telecommunication SC Duplex fiber optical patch cord with UPC / APC Polishing
Quick Details:
- Type: SC, UPC/APC fiber patch cord
- Mode: Single mode
- Fiber: G652D, G657A1,G657A2, G657A3
- Ferrule End-face: PC, UPC, APC
- Cable core: Duplex
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
Features:
- Serialized & Individual Test Records
- Meets RoHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- 3D fiber interferometer is available
- Pluggable structure, easy to intensive-installation
- Low insertion loss and high return loss
Applications:
- Optical access network
- Data processing networks
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, WAN, Test &Measurement
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
