Outdoor SM GYXTW 2 4 6 8 10 12 Core Armored Fiber Optic Cable

Outdoor SM GYXTW 2 4 6 8 10 12 Core Armored Fiber Optic Cable

Product Details:

Place of Origin: China
Brand Name: TTI
Model Number: GYXTW Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: D/A, D/P, T/T, , ,
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information

Product Name: GYXTW Fiber Optical Cable Application: Aerial,direct Buried,duct
Color: Black Material: PE
Fiber Type: G652D Fiber Count: 2-24 Cores
Wavelength: 1310nm Or 1550nm Strength Member: Steel Wire
Use: FTTX Length: Customizted
Quality Control: 100% Test Before Shipping Package: Wooden Ram
High Light:

12 Core Armored Fiber Optic Cable

,

GYXTW Armored Fiber Optic Cable

,

SM Armoured Optical Fiber Cable

Product Description

Outdoor Armoured Singlemode GYXTW 2 4 6 8 10 12 Core Fiber Optic Cable





1. Specification:

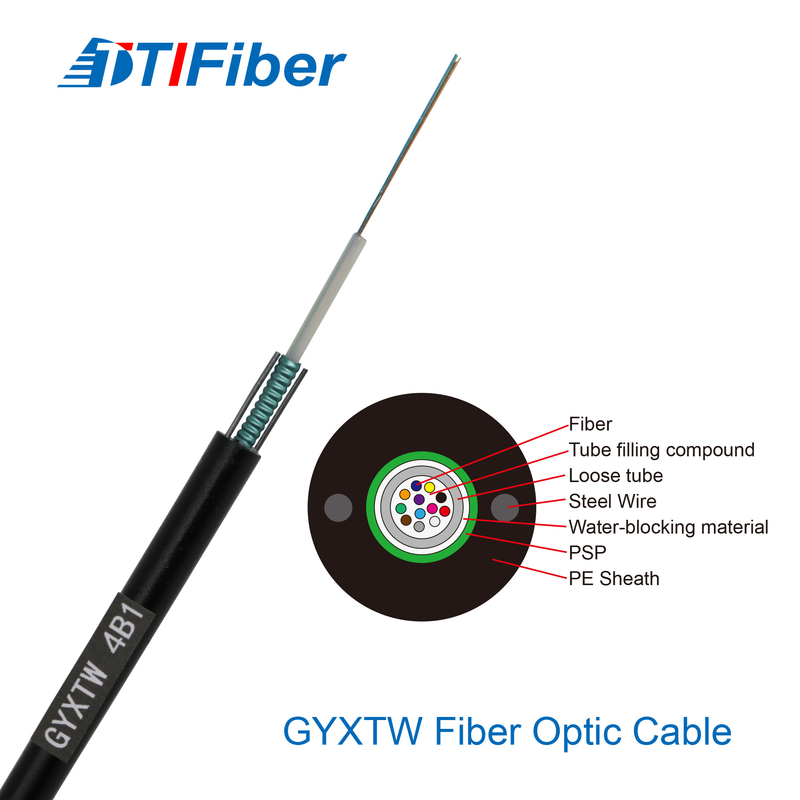

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

steel tape and the loose tube water-blocking material is applied to keep the cable compact

and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

The cable is completed with PE sheath.



Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



2. Feature:



Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Storage / Operating Temperature: -40℃~+70℃



Outdoor GYXTW Central Loose Tube Fiber Optic Cable
Item
fiber
nominal diameter (mm)
nominal weight(kg/km)
long-term/short-term permitted tensile (N)
Long-term/short-term permitted crush(N)
GYXTW-4
2-12
8.00
95
600/1500
1000/3000
GYXTW-6
2-12
8.00
105
1000/3000
1000/3000
GYXTW-8
2-12
8.00
132
600/1500
1000/3000
GYXTW-12
2-12
8.00
148
1000/3000
1000/3000



3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment



Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature -20~+60
Operating Temperature -40~+70
Storage Temperature -40~+70





Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)

2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D





Transmission Characteristics
  G.652 G.655 50/125μm 62.5/125μm

Max Attenuation

(dB/km) (+20℃)

850 nm     3.0 3.3
1300 nm     1.0 1.0
1310 nm 0.36 0.4
1550 nm 0.24 0.23
Cable Cute-off Wavelength (nm) ≤1260 ≤1450







4. Product Picture:

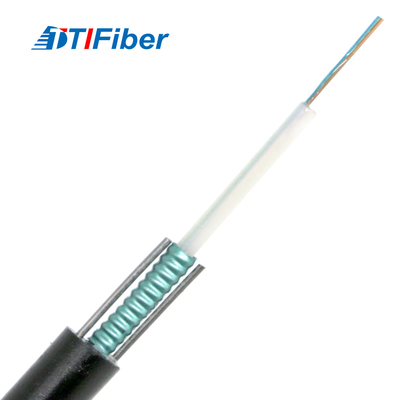

Outdoor SM GYXTW 2 4 6 8 10 12 Core Armored Fiber Optic Cable 0

Outdoor SM GYXTW 2 4 6 8 10 12 Core Armored Fiber Optic Cable 1

Outdoor SM GYXTW 2 4 6 8 10 12 Core Armored Fiber Optic Cable 2
