GYTS SM Underground 24 Core Outdoor armoured fibre optic cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | GYTS Fiber Optic Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | D/A, D/P, T/T, , , |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | GYTS Fiber Optical Cable | Application: | Buried |
|---|---|---|---|
| Color: | Black | Material: | PE |
| Fiber Type: | G652D | Fiber Count: | 2-288 Cores |
| Wavelength: | 1310nm Or 1550nm | Strength Member: | Steel Wire |
| Use: | FTTX | Length: | Customizted |
| Quality Control: | 100% Test Before Shipping | Package: | Wooden Ram |
| High Light: | 24 Core Armoured Fibre Optic Cable,Underground Armoured Fibre Optic Cable,GYTS Outdoor Armored Fiber Optic Cable |
||
Product Description
Underground Fiber Optic GYTS Armored SM Underground 24core Outdoor armoured Fiber Optical Cable
1. Specification:

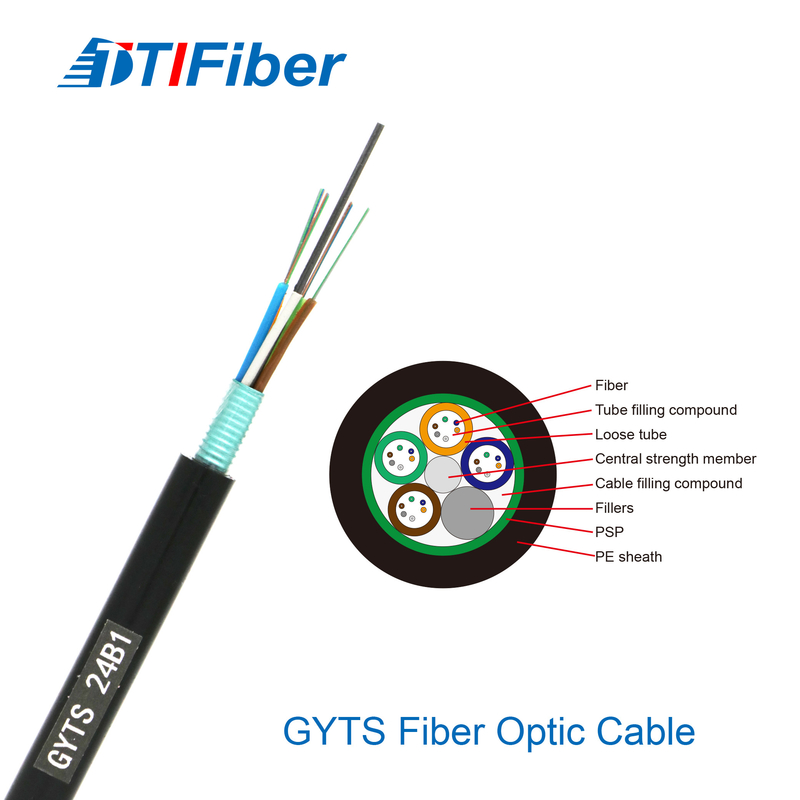

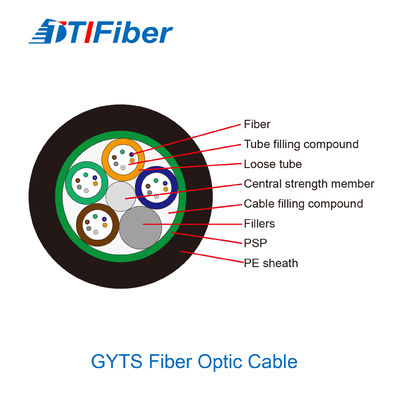

The fibers, 250μm, are positioned in a loose tube made of a high modulus palstic.the tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, Locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded atound the strength member into a compact and circular cable core. The PSP is longitudinally applied around over the cable core, which is filled with the filling compound to protece it from water ingress.Then, the cable is completed with a PE sheath.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
2. Feature:
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
4. Product Picture:
