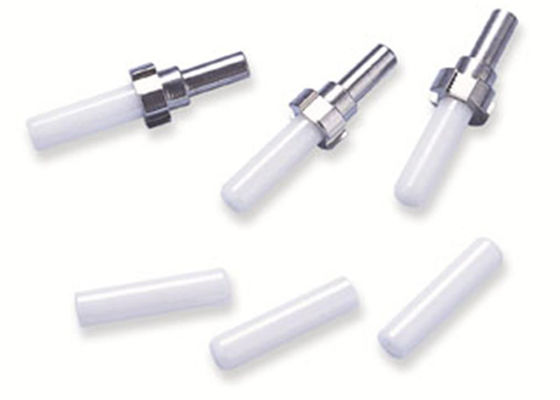

CATV SM MM Standard Fiber Ferrule for FC LC SC ST connectors
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FOF-SU |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1000PCS/Plastic box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 30000PCS/Day |
|
Detail Information |
|||
| High Light: | ceramic ferrule,stainless steel ferrule |
||
|---|---|---|---|
Product Description
CATV SM MM Standard Fiber Ferrule for FC LC SC ST connectors
Quick Detail:
- Name: UPC Fiber Ferrule
- Mode: SM MM
- Type: Standard, Angle, Step
- Material: Ceramic/Zirconia, Metal
- Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)
- Ferrule End-face: UPC APC
Description:
A ferrule is a long cylinder mounted on the end of the fiber and acts as a fiber alignment tool to ensure proper fiber optic connections to either another cable or to a transmitter or receiver.
Features:
- Ø 1.25mm or Ø2.5mm
- High precision and reliability
- Varieties of ferrule :SC,LC,MU,ST,SMA
- Varieties of end-face: PC, Cone, Step, Flat, Pre-angled
- General Ferrule Specification
Application:
- Telecommunication
- CATV
- LAN & WAN
- Network
Specification:
| Parameter | Single Mode | Multi Mode |
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |
