FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable

FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable

Product Details:

Place of Origin: China
Brand Name: TTI
Model Number: GYTY53 Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: We accept all online payments
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information

Product Name: GYTY53 Fiber Optical Cable Application: Telecommunication
Color: Black Material: PE
Fiber Type: G652D Number Of Conductors: ≥ 10
Wavelength: 1310nm Or 1550nm Strength Member: Corrugated Steel Tape Armoured
Use: FTTX Length: Customizted
Quality Control: 100% Test Before Shipping Package: Wooden Ram
High Light:

GYTY53 Single Mode Fiber Optic Cable

,

FTTX Single Mode Fiber Optic Cable

,

GYTY53 Fiber Optical Cable

Product Description

12 24 Core Optical Fiber Cable GYTY53 Single Mode Fiber Optic Cable





1. Specification:



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.



Product Name
GYTY53 Fiber Optic Cable
Material
Copper Conductor/CCA
Function
Network,Telecommunication,Instrumentation
Certificates
CE, RoHS
Jacket
ROHS Complied PVC, PE or LSZH Jacket
Color
Accept customization
Rated Temperature
60°C, 75 °C,90°C



2. Feature:



* Metallic(non-metallic) strength member;
* Loose tube stranded;
* Gel silling;
* Polyethylene sheath outdoor cable for communication pirpose;

* Transportation Temp: -40℃~+70℃;
* Installation Temp: -5℃~+50℃;
* Operation Temp: -40℃~+70℃
* Permisson bent radius:
* Static: 10D; Dynamic: 20D



3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment



  G.652D 50/125μm 62.5/125μm
Attenuation @850nm   ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm   ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km
  @1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
  @1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc   ≤1260nm

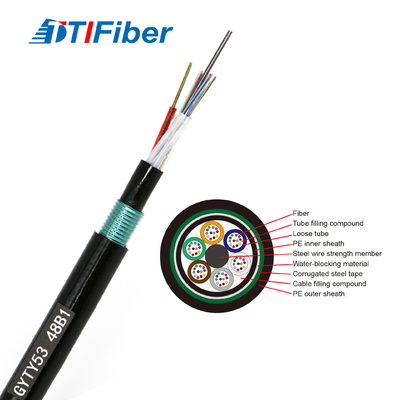

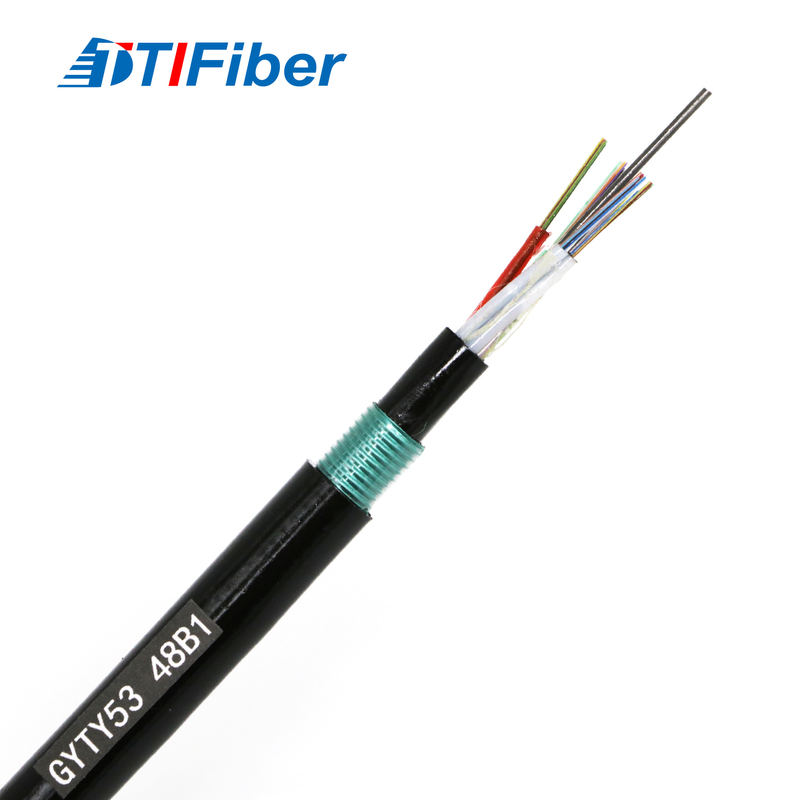

4. Product Picture:



FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable 0

FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable 1

FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable 2







5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
