ROHS Fixed Type Fiber Optic Terminal Box With Empty Box
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS |
| Model Number: | TTI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 5pcs/Case |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, , PayPal, Monthly settlement |
| Supply Ability: | 5000 PCS/Week |
|
Detail Information |
|||
| High Light: | Fixed Type Fiber Optic Terminal Box,ROHS Optical Terminal Box,Fixed Type Optical Termination Box |
||
|---|---|---|---|
Product Description

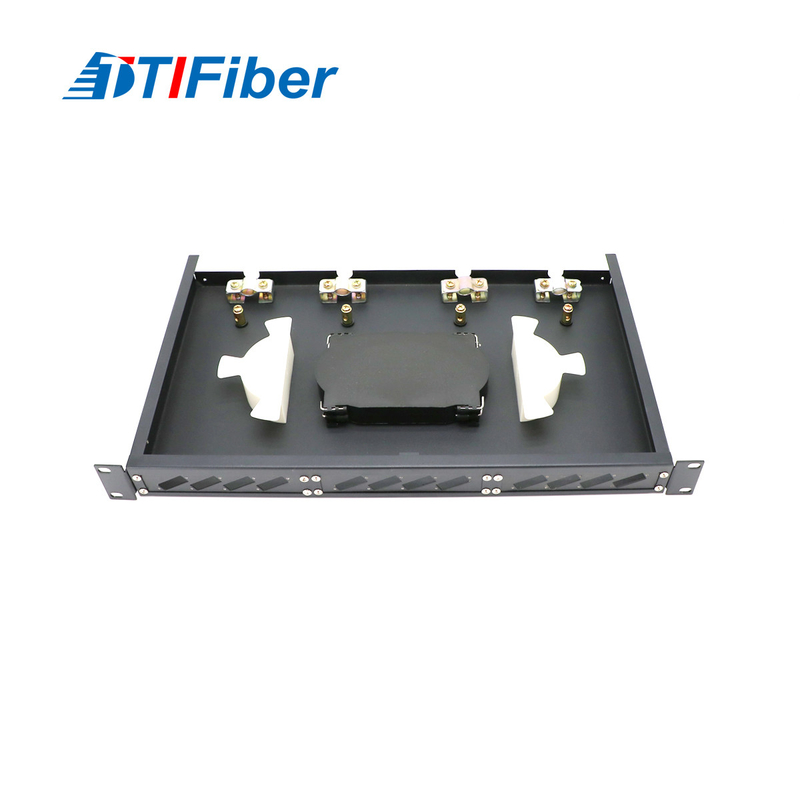

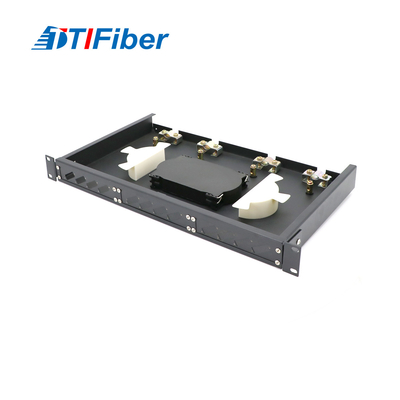

Fixed type Rack mounted Fiber Optic Terminal Box with Empty Box
Fixed type Fiber Optic Terminal Box Description:
Fixed type rack Mounted Terminal Box can be applied in the branch connection of fiber termination, working as distribution box. Its front mark on the plates is easy for identification and operation.
Fixed type Fiber Optic Terminal Box Features:
- 19" standard slide-out design, easy and convenient on assembling
- Cabinet surface covered with electrostatic powder coating, luxury and beautiful
- Bend radius of optical fiber more than 40mm
- Easy to access the back and splice tray
- Easy to repeated opening and using
- Could deploy valve and Grounding device
- Apply for SC/ST/FC/LC pigtail and adapter
Fixed type Fiber Optic Terminal Box Application:
- Fiber to home
- Co-location/customer premise
- LAN/WAN
- Telecommunication networks
- CATV networks
Fixed type Fiber Optic Terminal Box Specification:
| Type | RMF-1U | RMT-2U |
| Size(mm) L*W*H |
480*250*1U | 480*250*2U |
| Max Capacity (Core) | 24 | 48 |
| Outer Carton Dimension(mm) | 485*425*305/5pcs | 485*675*305/5pcs |
| Outer Carton Volume(m3) | 0.063 | 0.1 |
| Outer Carton Weight(Kg) | 14.2/5pcs | 21/5pcs |
Fixed type Fiber Optic Terminal Box Technical Data:
| Model | RMF-1U |
| Size(mm): L*W*H | 430*250*1U |
| Max capacity: | 24core(1U) |
| Optical fiber winding radius: | ≥40mm |
| Fiber length left in tray: | none |
| Fiber length left in tray: | ≥1.6m |
| Fiber capacity: | 48 cores |
| Working temperature: | - 400°C ~ + 600°C |
| Lateral pressure-resistance: | 500N |
| Shock-resistance: | 750N |
