4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath

4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath

Product Details:

Brand Name: TTI
Certification: CE
Model Number: GYFY Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: We accept all online payments
Supply Ability: 10000 KM
Get Best Price Contact Now

Detail Information

Place Of Origin: Guangdong China Product Name: GYFY Fiber Optical Cable
Color: Black Material: PE
Fiber Type: G652D Number Of Conductors: ≥ 10
Wavelength: 1310nm Or 1550nm Strength Member: Glass Yarn
Use: FTTX Length: Customizted
Quality Control: 100% Test Before Shipping Package: Wooden Ram
High Light:

G652D Duct Fiber Optic Cable

,

GYFY Duct Fiber Optic Cable

,

PE Sheath G652D Fiber Optic Cable

Product Description

4 6 8 12 16 24 Core GYFY Duct PE Sheath Fiber Optic Cable





1. Specification:

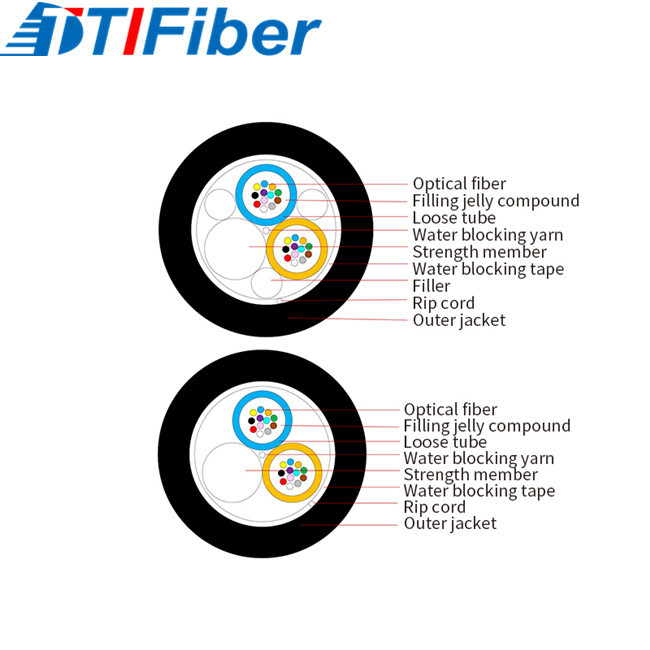

The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.





Item
Fiber Optic Cable
Model Number
GYFY
Place of Origin
Guangdong, China
Brand Name
TTI
Number of Conductors
≥ 10
Application
Networking
Jacket
PE
Color
Black
Length
1km 2km 3km 4km
Strength member
Glass yarn
Packing
1-2km/drum
Fiber Type
G652D/G657A1/G657A2
Certification
CE/ROHS/ISO9001
Strength member
FRP
MOQ
1KM



2. Feature:



1. LAN Backbones
2. Networks with mixed indoor and outdoor cabling
3. Flooded duct
4. Premises distribution system





Fiber Type Fiber attenuation(+20) Band Width Numerical aperture Cut-off wavelength of optic fiber cable
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---



3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

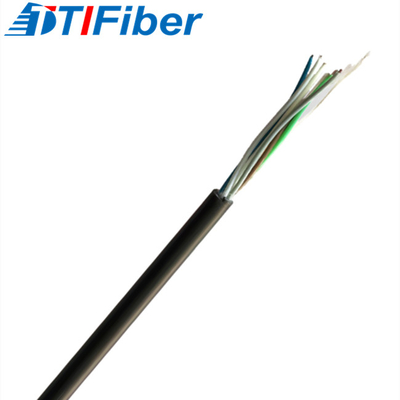

4. Product Picture:



4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath 0

4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath 1

4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath 2





5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
