12 Core Strength Member FRP GYFXY G652D Fiber Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | GYFXY Fiber Optic Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | We accept all online payments |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | GYFXY Fiber Optical Cable | Place Of Origin: | Guangdong China |
|---|---|---|---|
| Color: | Black | Material: | PE |
| Fiber Type: | G652D | Fiber Count: | 2-12 Cores |
| Wavelength: | 1310nm Or 1550nm | Strength Member: | FRP |
| Use: | FTTX | Length: | Customizted |
| Quality Control: | 100% Test Before Shipping | Package: | Wooden Ram |
| Highlight: | GYFXY G652D Fiber Cable,Strength Member FRP G652D Fiber Cable,12 Core G652D Fiber Optic Cable |
||
Product Description
Optic Fiber Cable Strength member GYFXY 12 core G652D Fiber Cable
1. Specification:

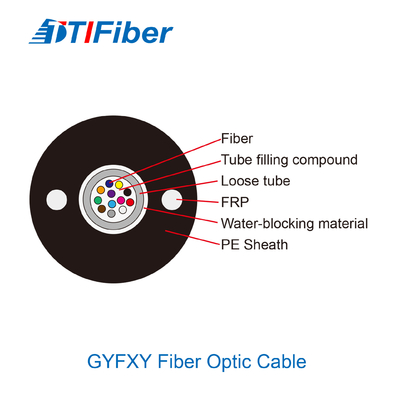

The cable consists of a single central gel filled uni-tube containing individually colour coded 250 μm buffered fibers. This tube is embedded in a water blocking E-glass yarn, and over sheathed with PE/PVC/LSZH (Low Smoke Zero Halogen) outer jacket. The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.
A choice of multimode and single mode fiber types and specifications are offered with fiber counts from four to twenty four in the standard range.
2. Feature:
1.LAN Backbones
2.Networks with mixed indoor and outdoor cabling
3.Flooded duct
4.Premises distribution system
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

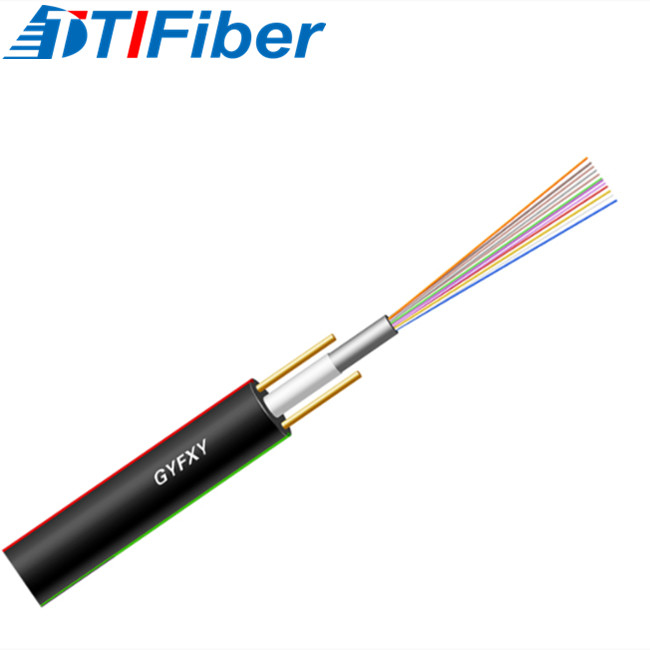

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
