GYFTY53 12 24 Core Outdoor SM Direct Burial Fiber Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | GYFTY53 Fiber Optic Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | We accept all online payments |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | GYFTY53 Fiber Optical Cable | Application: | Burial |
|---|---|---|---|
| Color: | Black | Material: | PE |
| Fiber Type: | G652D | Fiber Count: | 2-144 Cores |
| Wavelength: | 1310nm Or 1550nm | Strength Member: | FRP |
| Use: | FTTX | Length: | Customizted |
| Quality Control: | 100% Test Before Shipping | Package: | Wooden Ram |
| High Light: | GYFTY53 Direct Burial Fiber Cable,SM Direct Burial Fiber Cable,24 Core GYFTY53 Fiber Optic Cable |
||
Product Description
GYFTY53 12 core 24 core Single Mode Direct Burial Outdoor Fiber Optic Cable
1. Specification:
GYFTY53 uses a Fiber Reinforced Plastic (FRP) as central strength member to provides anti-electromagnetic interference property. The armored structure protects the cable from rat bite and moisture proof. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application, suitable for frequent lightning area and anti electric field.
2. Feature:
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

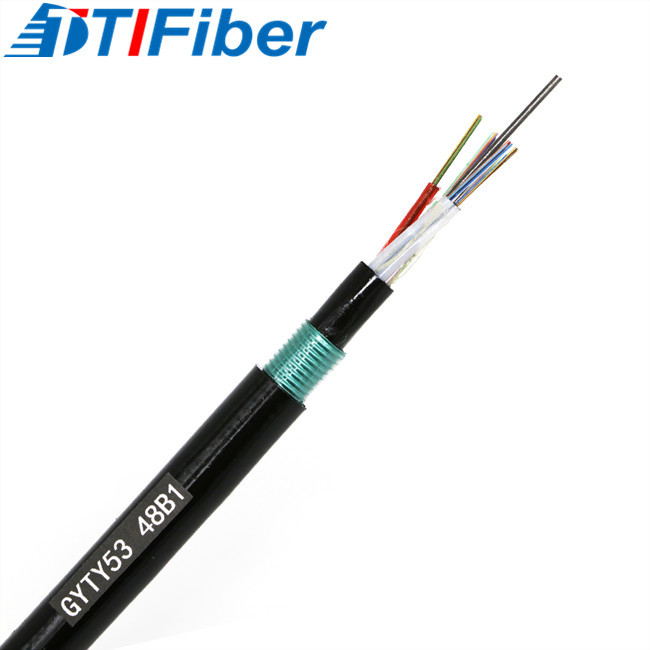

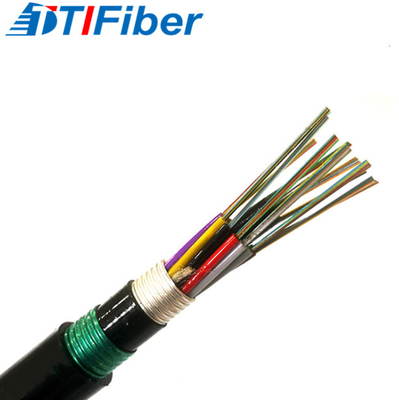

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
