Outdoor GYFTY 12 24 48 96 Core G652D Fiber Optical Cable With FRP Strength Member

Outdoor GYFTY 12 24 48 96 Core G652D Fiber Optical Cable With FRP Strength Member

Product Details:

Place of Origin: China
Brand Name: TTI
Model Number: GYFTY Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: We accept all online payments
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information

Product Name: GYFTY Fiber Optical Cable Application: Long Distance Communication System, Local Area Network
Color: Black Material: PE
Fiber Type: G652D Number Of Conductors: ≥ 10
Wavelength: 1310nm Or 1550nm Strength Member: Central Steel Wire
Use: FTTX Length: Customizted
Quality Control: 100% Test Before Shipping Package: Wooden Ram
High Light:

96 Core G652D Fiber Optical Cable

,

48 Core G652D Fiber Optical Cable

,

24 Core G652D Fiber Cable

Product Description

Outdoor GYFTY G652D 12 24 48 96 Core Fiber Optical Cable with FRP Strength Member





1. Specification:

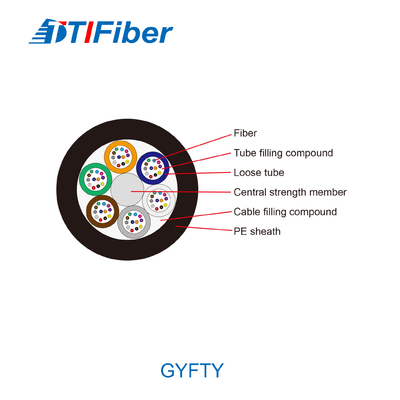

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.



  G652D G655 50/125μm 62.5/125μm
Attenuation(+20deg C) @850nm     ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm     ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM --
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km
Bandwidth(Class A) @850nm     ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm     ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm




2. Feature:



1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.



3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

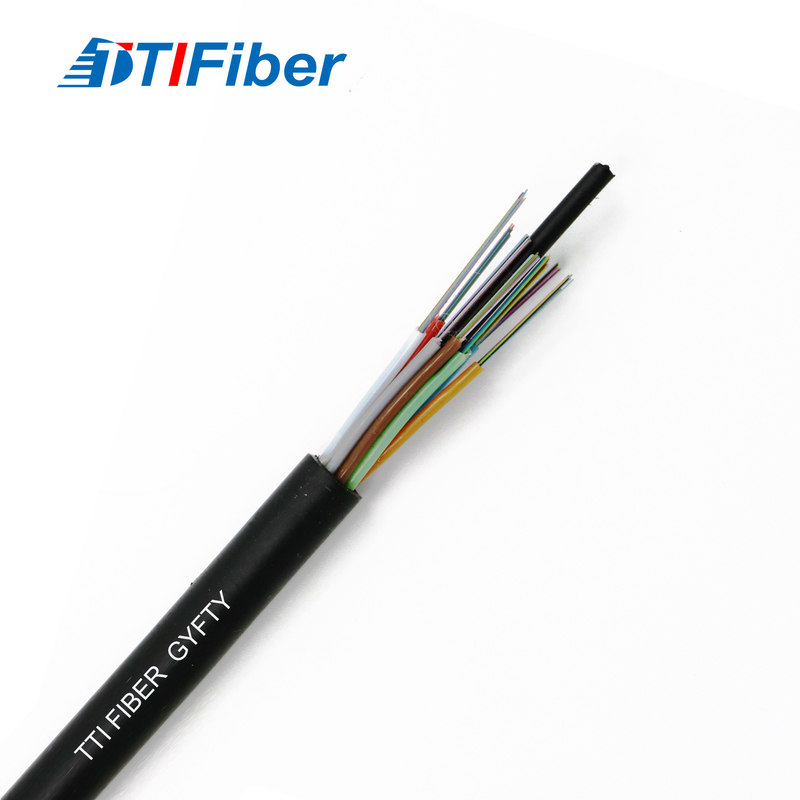

4. Product Picture:



Outdoor GYFTY 12 24 48 96 Core G652D Fiber Optical Cable With FRP Strength Member 0

Outdoor GYFTY 12 24 48 96 Core G652D Fiber Optical Cable With FRP Strength Member 1
