GYFTS 24 Core Singlemode G652D FRP Direct Buried Fiber Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | GYFTS Fiber Optic Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | D/A, D/P, T/T, , , |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | GYFTS Fiber Optical Cable | Application: | Buried |
|---|---|---|---|
| Color: | Black | Material: | PE |
| Fiber Type: | G652D | Fiber Count: | 2-288 Cores |
| Wavelength: | 1310nm Or 1550nm | Strength Member: | Central Steel Wire |
| Use: | FTTX | Length: | Customizted |
| Quality Control: | 100% Test Before Shipping | Package: | Wooden Ram |
| High Light: | FRP Direct Buried Fiber Cable,G652D Direct Buried Fiber Cable,Singlemode G652D Fiber Cable |
||
Product Description
Outdoor GYFTS 24 Core Singlemode G652D FRP Direct Buried Fiber Optic Cable
1. Specification:
GYFTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication
and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic
cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant.
TTI provides GYFTS from 4 fiber cores to 288 fiber cores. Both single mode type and multi-mode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
2. Feature:
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

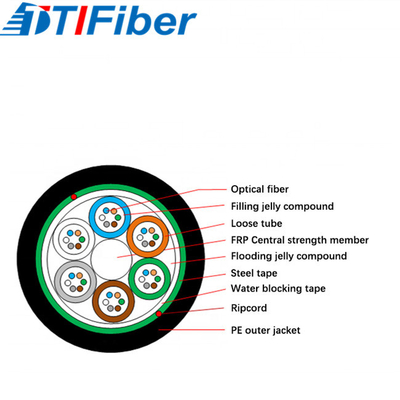

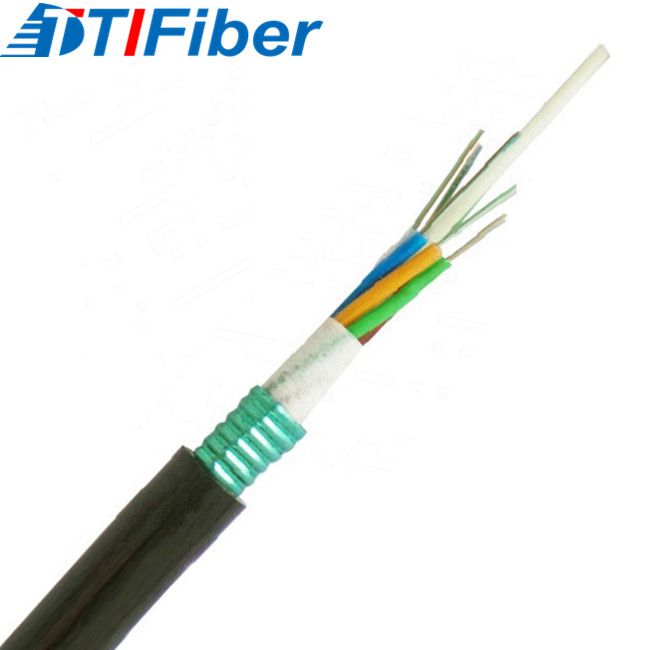

4. Product Picture:
