GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core

GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core

Product Details:

Place of Origin: China
Brand Name: TTI
Model Number: GYFTC8S Fiber Optic Cable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: D/A, D/P, T/T, , ,
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information
Product Name: GYFTC8S Fiber Optical Cable Application: Aerial
Color: Black Material: PE
Fiber Type: G652D Fiber Count: 2-144 Cores
Wavelength: 1310nm Or 1550nm Strength Member: Central Steel Wire
Use: FTTX Length: Customizted
Quality Control: 100% Test Before Shipping Package: Wooden Ram
High Light:

G652D Fiber Optic Underground Cable

,

GYFTC8S Fiber Optic Underground Cable

,

SM Aerial Figure 8 Fiber Cable

Product Description

GYFTC8S FRP SM G652D Aerial Figure 2-144 Core Fiber Optic Underground Cable





1. Specification:

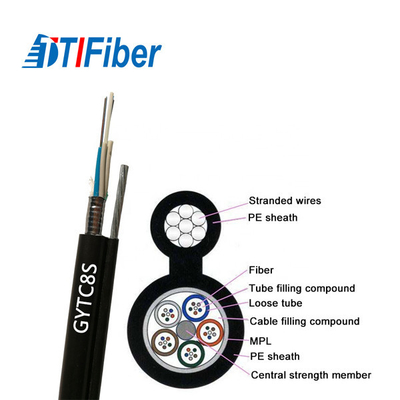

The GYFTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around FRP central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.



  G652D G655 50/125μm 62.5/125μm
Attenuation(+20deg C) @850nm     ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm     ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM --
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km
Bandwidth(Class A) @850nm     ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm     ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm




2. Feature:



Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.



Model Fiber count Tube count Filling rope count

Weight

(kg/km)

Tension

(N)

Crush

(N/100mm)

Bending Radius Static / dynamic

(mm)
GYTC8A-2~6 2~6 1 4 158 According to the diameter of suspension wire 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 158
GYTC8A-14~18 14~18 3 2 158
GYTC8A-20~24 20~24 4 1 158
GYTC8A-26~30 26~30 5 0

158





Fiber Type Fiber attenuation(+20℃) Band Width Numerical aperture Cut-off wavelength of optic fiber cable
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---



3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

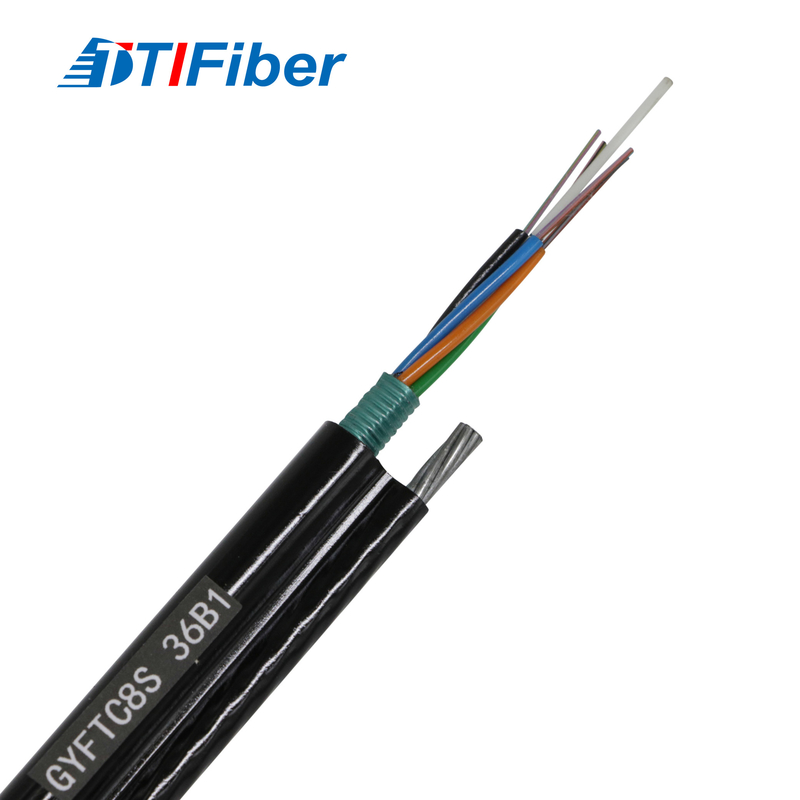

4. Product Picture:



GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core 0



GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core 1GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core 2GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core 3



5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
