1 Core 2 Core G652D Fiber Optic Cable Single Mode For Telecommunication
Product Details:
| Place of Origin: | Chinaland |
| Brand Name: | TTI |
| Certification: | CE,ROSH |
| Model Number: | FTTH |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden drum |
| Supply Ability: | 5000 meters per day |
|
Detail Information |
|||
| Color: | Black | Application: | Telecommunication |
|---|---|---|---|
| Jacket: | LSZH | Conductor: | Steel |
| OEM: | Welcome | Certification: | ISO9001 |
| Factory: | TTI Fiber | Cores: | 1 |
| High Light: | G652D Fiber Optic Cable,1 Core Fiber Optic Cable,G652D Fiber Optic wire |
||
Product Description
1 Core 2 Core G652D Fiber Optic Cable Single Mode For Telecommunication
FTTH 1 Core 2 core single mode fiber optic cable G652D Fiber Optic Cable
Fiber Optic Outdoor Drop Cable Describution:

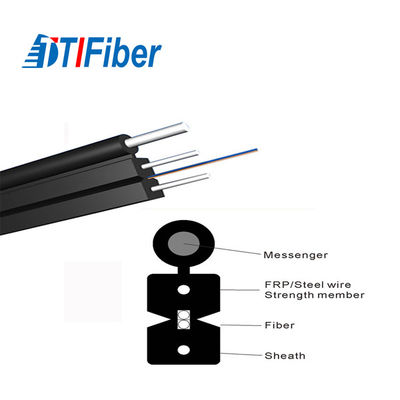

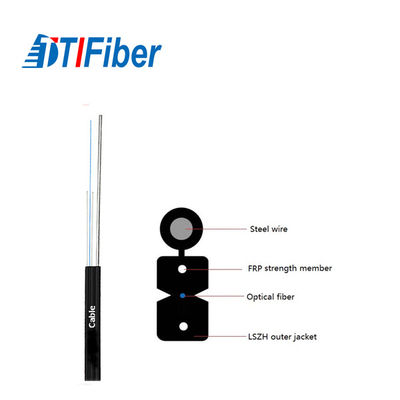

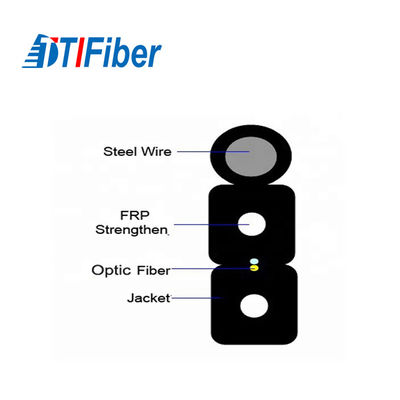

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath.
Fiber Optic Outdoor Drop Cable Features:
- Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
- Simplex and duplex available
- With ceramic fettules
- PVC&LSZH cable option
- Low insertion loss and hight return loss
- Excellent repeatability and changeability
- Optical performance 100% factory test
Fiber Optic Outdoor Drop Cable Application:
- All types of fiber cables with different structures
- High performance optical network operating
- High speed optical routes in buildings (FTTx)
- Application in L band
Fiber Optic Outdoor Drop Cable
Construction Parameter:
| Fiber Core | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×5.0 | 2.0×5.0 | 2.0×5.3 | 2.0×5.3 |
| Cable Weight(kg/km) | 9 | 10 | 11 | 12 |
Fiber Optic Outdoor Drop Cable
Mechanical & Environmental Performance:
| Max Load (N) | Long Term | 60 | 60 | 60 | 60 |
| Short Term | 120 | 120 | 120 | 120 | |
| Bending Radius(CM) | Dynamic | 30 | |||
| Static | 15 | ||||
