Wholesale Fiber Optic Connector Lc Sc Fc St Mu Apc Up Ferrule
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE . ISO9001 |
| Model Number: | fiber ferrule |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000pcs/day |
|
Detail Information |
|||
| Product Name: | Fiber Ferrule | OD: | 1.25 / 2.5mm |
|---|---|---|---|
| Material: | Ceramic | Connector Type: | SC / LC /ST /FC |
| Core Type: | Singlemode / Multimode | Package: | PE Bag |
| Highlight: | Zirconia Ceramic Fiber Optic Ferrule,LC Fiber Optic Ferrule,fc 1.25 mm ferrule |
||
Product Description
Wholesale Fiber Optic Connector Lc Sc Fc St Mu Apc Up Ferrule
Specification:
Outer diameter: (1.2499±0.0005)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Brief Introduction
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Features:
Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Application:
Telecommunication
CATV
LAN (including FTTx)
Data network
CATV
LAN (including FTTx)
Data network
Specification
| Parameter | Single Mode | Multi Mode |
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |

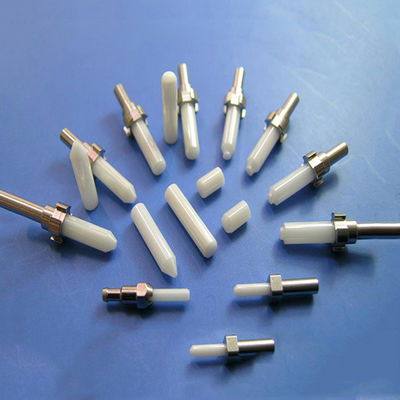

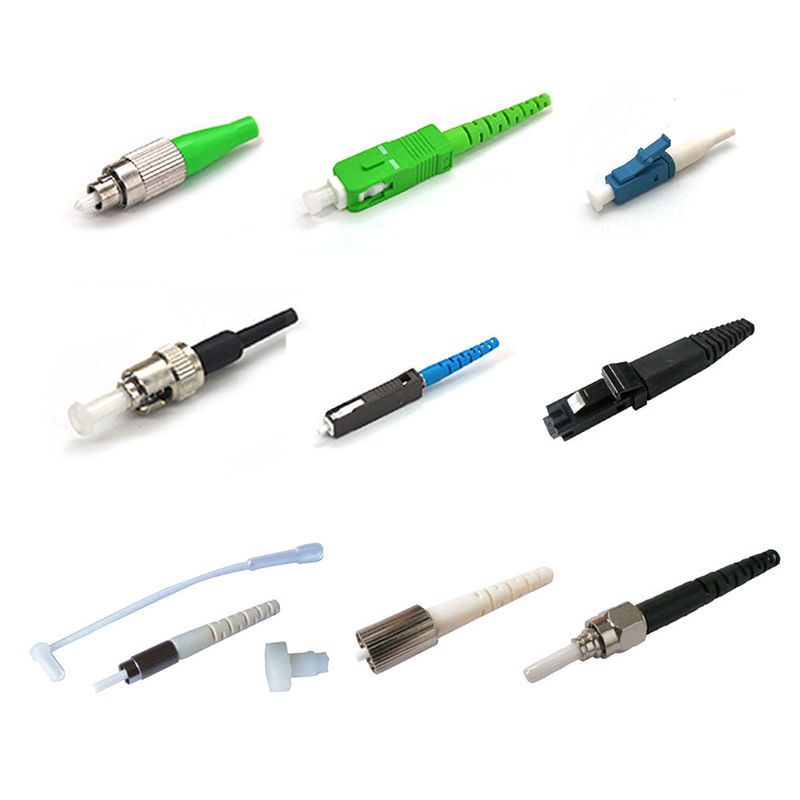

Product pictures
7. FAQ:
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them.
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport, airport transport.
