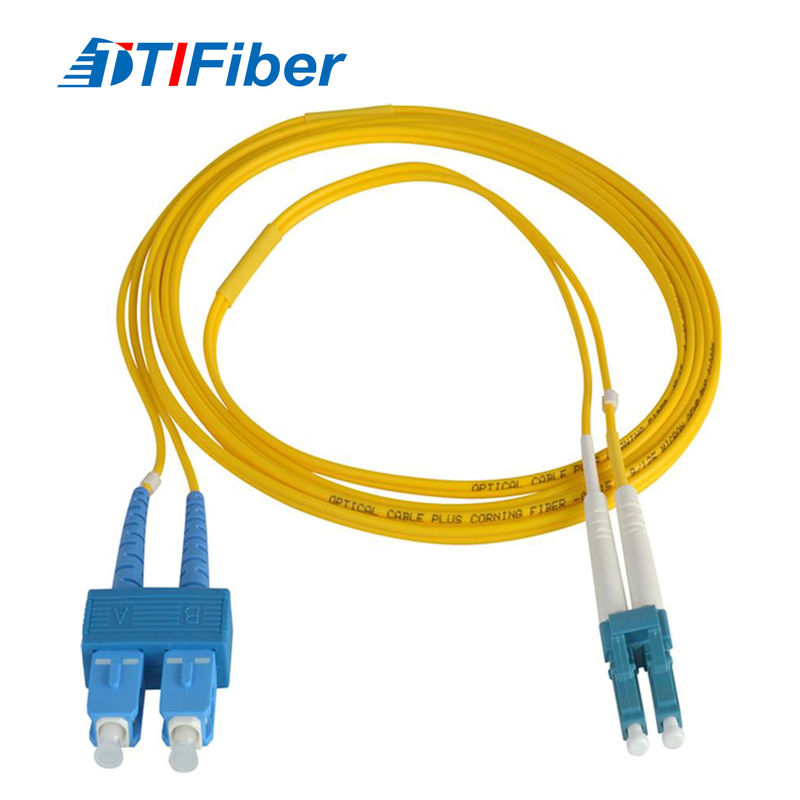

LC-SC Single Mode 1.6mm 2.0mm 3.0mm SC LC Single Mode Fiber Optic Patch Cable Cord
Product Details:
| Place of Origin: | China Mainland |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | LC-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | 2-4 work days |
| Payment Terms: | T/T |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Connector: | LC, SC | Ferrule End -face: | UPC, APC |
|---|---|---|---|
| Jacket: | PVC, LSZH, OFNP, OFNR | Inner: | Ceramic |
| Cable Length: | 1M; 2M; 3M Etc., Or Customized | Cable Diameter: | 0.9mm,2.0mm Or 3.0mm |
| Fiber Type: | SM Or MM | Connector Type: | PC/UPC/APC, SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO, ST SC LC FC, SC/Apc & SC/Upc, SC-SC LC-LC FC-FC ST-ST Or Hybrid |
| Length: | Any Length Is Customizable, 40M | Material: | PVC, LSZH, PVC/LSZH |
| Return Loss: | >55dB, >30dB, >=35 DB, 50dB, ≥45dB | Color: | Yellow, Orange Or Others, Aqua Or Cusomized |
| Type: | Lc Mtp, SC/PC-SC/PC, Single Mode, Single Mode/Multi-mode, Type B | Item: | Optical Fiber Patch Cord, LC SC OM1 62.5/125 LSZH Fiber Optic Patch Cord |
| Fiber Count: | Simplex Or Duplex, Duplex | Repeatability: | Simplex Or Duplex, Duplex |
| Polish: | APC, UPC, PC, PC/UPC/APC | Real Factory: | Yes |
| Quality Control: | 100% Test Before Shipping | Application: | FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base Station, For ODF Internal Link, For Room Equipment Internal Link, FTTH/Test Equipments/TV/LAN/Telecommunication Equipments |
| Fiber Type: | Simplex And Duplex, G652D, G655, Anything, SM Or MM | Product Name: | Fiber Optic Patch Cord, Fiber Optic H Connector SC Patch Cord Compatible Corning Jumper, Duplex Armour SC LC APC UPC Outdoor Gpon Fiber Optic Patch Cord, Fiber Optic SC FC LC APC UPC Patch Cord/Patchcord 2 Metro, SM Simplex SC/APC FC/APC Optical Fiber Patc |
| High Light: | 1.6mm Fiber Optic Patch Cord,2.0mm Fiber Optic Patch Cord,3.0mm single mode patch cable |
||
Product Description
| Description: |
| A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating. |
| Feature: |
|
|
| Application: |
|
Specification:
| Parameter | Unit | FC, SC, LC | ST, MU | |||||
| SM | MM | Sm | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Los(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310,1510 | 1310,1510 | |||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | |||||
| Vibraton | dB | ≤0.2 | ≤0.2 | |||||
| Operating temperature | ℃ | -40~75 | -40~75 | |||||
| Storage temperature | ℃ | -40~85 | -40~85 | |||||
| Cable diameter | nm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | |||||
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
 |
|
|
|
