Outdoor PSP Armored 4 8 12 Core GYXTW Fiber Optic Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | GYXTW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Drum |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000KM/M |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Conring/FiberHome | Fiber Core: | 2-12 Core |
|---|---|---|---|
| Fiber Type: | G652D/G657A1/G657A2 | Tube: | Center Tube |
| Armored: | PSP Armored | Application: | Outdoor Aerial/Pipe/Buried |
| Outer Diameter: | 6.0-8.8mm | Jacket Material: | PE Outer Sheath |
| Highlight: | GYXTW Fiber Optic Cable,PSP Armored Fiber Optic Cable,8 core armored fiber cable |
||
Product Description
Oudtoor GYXTW Fiber Optic Cable 4 Core 8 Core 12 Core Center Tube Armored Use for Overhead ,Pipe,Buried
Description

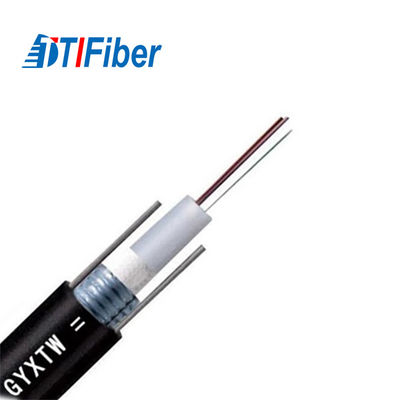

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature : -40℃ to + 70℃
