2 4 6 8 12 16 24 Core Armored GYXTW Single Mode Fiber Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER |
| Certification: | ISO,CE,CPR,ANATEL |
| Model Number: | GYXTW |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Drum |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000KM/M |
|
Detail Information |
|||
| Fiber Count: | 2-24 Core | Storage / Operating Temperature: | -40℃~+70℃ |
|---|---|---|---|
| Cladding Diameter: | 124.8±0.7 Um | Cladding Non-Circularity: | ≤0.7% |
| Core-Cladding Concentricity Error: | ≤0.5 Um | Coating Diameter: | 245±5 Um |
| Coating Non-Circularity: | ≤6.0% | Cladding-Coating Concentricity Error: | ≤12.0 Um |
| Attenuation(max.): | ≤0.36 DB/km | ||
| High Light: | GYXTW Single Mode Fiber Cable,Armored Single Mode Fiber Cable,250μm single mode optical fiber |
||
Product Description

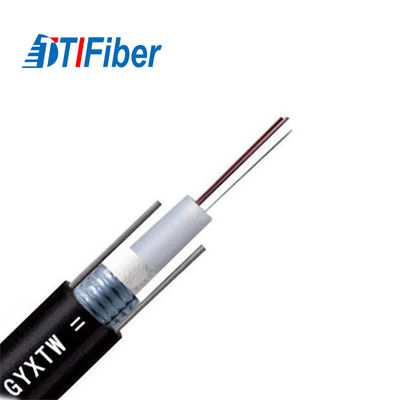

2~24 Core Single Mode & Multimode Outdoor Armoured GYXTW Fiber Optic Cable
Description
The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Fiber Parameter
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.24 | ||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
Technical Parameter
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
| 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
| Transmission Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Max Attenuation (dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
| 1300 nm | 1.0 | 1.0 | |||
| 1310 nm | 0.36 | 0.4 | |||
| 1550 nm | 0.24 | 0.23 | |||
| Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 |
|
||
