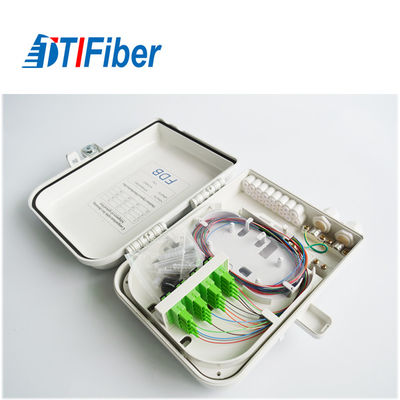

Ftth Fiber Optic Distribution Box Home Network Distribution Terminal Closure
|Place of Origin:||China|
|Certification:||CE / ROHS|
|Model Number:||Fiber Splitter Distribution Box|
Payment & Shipping Terms:
|Minimum Order Quantity:||Negotiable|
|Delivery Time:||5-7 work days|
|Supply Ability:||1000 pieces / week|
|Type:||Outdoor Wall Mountable||Material:||High Impact Plastic, ABS Or PC|
|Splice Capacity:||8~24 Cores||Suitable Adapter:||SC LC Connectors|
outdoor distribution box,
fibre distribution box
Factory price IP66 home network distribution terminal box/ fiber optic splitter box ftth 16 port
fiber optic distribution box Product Description
A range of Fiber Optic Distribution box has been designed specifically for use within Fiber To The Home (FTTH) Passive Optical Networks (PON).
Fiber Distribution Box is a product range of compact, wall or pole mountable fiber enclosures for indoor and outdoor use. They are designed for be deployed in fiber network demarcation point to provide easy customer connection. In combination with a different adapter footprint and splitters, this system offers ultimate flexibility.
Inside fiber distribution box, it is available with splicing and/or patching capabilities, high connector density, splitter accommodation, Fiber Distribution Box product range offers flexible solutions for a wide range of applications in the access network.
It can be put the PLC Splitter 1×2,1×4,1×8,1×16,1×32 inside this box.
fiber optic distribution box Features
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4 & 1X8 & 1X16PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Up to 24 FTTH drops.
Wall and pole mountable.
2 inlet ports, 8~24 outlet ports.
Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
Job stress: 70 kpa to 108 kpa;
Using the temperature:- 40 ~ + 60 ℃
Relative humidity: ≤95% (+ 40 ℃).
fiber optic distribution box Application
widely used in FTTH access network.
Data communications Networks
Local Area Networks
fiber optic distribution box Specification:
|FB-0208||181X45X207mm||8 ports & splice||Pole/Wall|
|FB-0216||220x80x300mm||16 ports & splice||Pole/Wall|
