Fiber Optic Patch Panel Termination Box Slidable type FTTH 12 Core SC Adapter
Product Details:
| Place of Origin: | Chinaland |
| Brand Name: | TTI |
| Certification: | ISO |
| Model Number: | FTB-12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotation |
| Packaging Details: | Box |
| Delivery Time: | 2-4 works day |
| Payment Terms: | T/T, |
| Supply Ability: | 5000pcs/day |
|
Detail Information |
|||
| Structure: | 1U | Model: | Slidable Type |
|---|---|---|---|
| Connector: | SC | Material: | Cold Rolled Steel |
| Color: | Black | Port: | 12 |
| Thickness: | 1.0mm | Brand: | OEM |
| Splice Tray: | White | ||
| High Light: | fiber optic termination box,optical terminal box |
||
Product Description
Fiber Optic Patch Panel Termination Box Slidable type FTTH 12 Core SC Adapter
Fiber Optic Patch Panel Description:
Fiber Optic Patch Panel is the device that terminates between the optical cables and the optical communication equipments, with the function of splicing, termination, storing and patching of optical cables.It consists of housing and splice tray. The splice tray is used in the cabinet for the function of splicing of the fiber optic cables. The housing is made of cold rolling steel, with powder coating. It is used in indoor environment.
Fiber Optic Patch Panel Feature:
1U standard installation
Adjustable position in forward and backward direction
Compact aluminum body
Electrostatic spraying surface
Light structure and fine-looking appearance.
Fiber Optic Patch Panel Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN
CATV
Fiber Optic Patch Panel Specification:
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

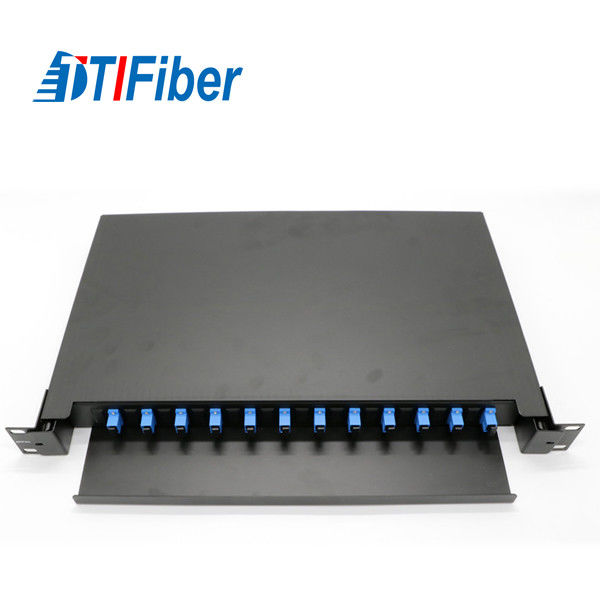

Product Picture:
