LAN Communication Fiber Optic Ethernet Cable GYFTC8S 24 Core Self Supporting Figure 8
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | GYFTC8S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden drum |
| Delivery Time: | 6-8 working days |
| Payment Terms: | L/C, T/T, ,Paypal |
| Supply Ability: | 5000m per day |
|
Detail Information |
|||
| Product Name: | GYFTC8S | Fiber Count: | 2-288 Core |
|---|---|---|---|
| Installation: | Self-supporting Aerial | Application: | LAN Communication |
| Standard: | Telecom Standard | Color: | Black |
| Jacket: | PE | Package: | Wooden Drum |
| Warranty: | 20 Years | Factory: | Yes |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
GYFTC8S fiber optical cable 24 Core Self-supporting Figure 8 Cable
Definition of GYFTC8S
The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After wrapped with the water blocking tape, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Characteristics
· Non-metal strength has an excellent anti-electromagnet ability
· Proven loose tube design for good performance
· Excellent mechanical and environmental characteristics
· Good flexibility and bending performance
· Small outer diameter,light weigh easy to installation
Specification
| fiber count | configuration | filler number | out diameter | mass | minimum bend radius | tensile strength | crush resistance | |||
| dynamic | static | short term | long term | short term | long term | |||||
| tubesxfibres | mm | kg/km | mm | mm | N | N | N/10CM | N/10CM | ||
| 6 | 1x6 | 5 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 12 | 2x6 | 4 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 24 | 4x6 | 2 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 36 | 6x6 | 0 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 48 | 4X12 | 2 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 60 | 5x12 | 1 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 72 | 6x12 | 0 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 96 | 8X12 | 0 | 13.1*21.0 | 230 | 270 | 135 | 5000 | 2500 | 1000 | 300 |
| 144 | 12x12 | 0 | 15.8*23.7 | 310 | 320 | 160 | 5000 | 2500 | 1000 | 300 |
| 192 | 8x24 | 0 | 14.9*22.8 | 280 | 300 | 150 | 5000 | 2500 | 1000 | 300 |
| 288 | 12x24 | 0 | 18.4*26.3 | 390 | 370 | 185 | 5000 | 2500 | 1000 | 300 |

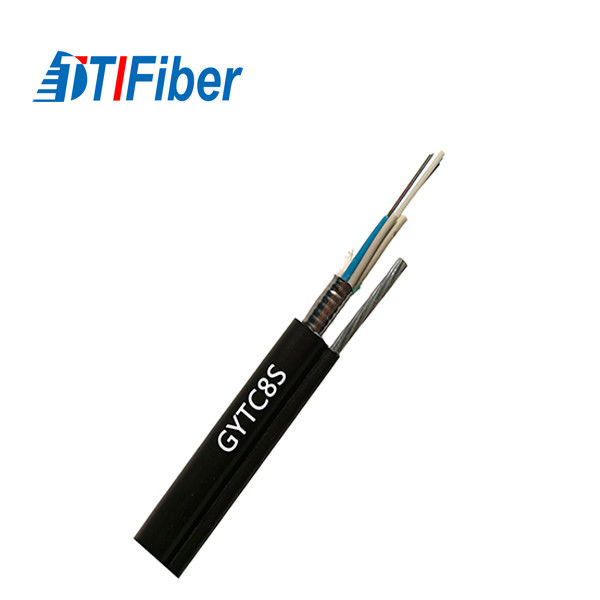

Product pictures
