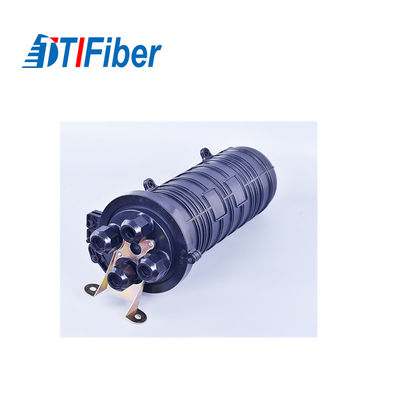

48 96 144 Core Fiber Optic Splice Closure Vertical Dome Type Heat Shrinkable Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | ROHS, ISO |
| Model Number: | FOSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton |
|
Detail Information |
|||
| Size: | 190*310 | Max Splice Tray: | 4 |
|---|---|---|---|
| Max Capacity: | 48/96/144 | Cable Port: | 2 In,2 Out |
| Sealing Structure: | Heat Shrinkable | Weight: | 1.9 |
| Highlight: | fibre optic splice closure,fiber optic joint closure |
||
Product Description
48 96 144 Core Fiber Optic Splice Closure Vertical / Dome Type With High Quality
Distribution:
Fiber optic splice closure provide suitable for cable whose diameter is 10-22mm, they can be used in aerial, duct and direct buried application. These products are made of high quality ABS material and with mechanical sealing structure filled with the sealing material.It can be reopened and reused without changing.
Features:
1, Four- way cable entries and exists design
2, Can be reopened
3, Can be fixed by metal work
4, Clear optical fiber cable
5. Closure body is made by Super ABS material, and the bolt was made in stainless steel
6 Great corrosion resistance
7. Suitable for any harsh environment
8. Max capacity:144 cores
9. All the index reach the YD/T814-2004
Installation procedure:
1. Open the closure
2. Fix the cable and check its length in the closure
3. Strip off the cable and cable jacket
4. Seek out the cable cores and get preparation for cable fixation
5. Fix the strengthen cores and reorganize the extra cores
6. Fix the cable an splice the cable
7. Arrange the splice protective tube and fiber
8. Complete inspection
9. Install the dome.
Specification:
| Type | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 –Φ 17 | Φ 10 –Φ 22 | Φ 10 –Φ 22 | Φ 10 –Φ 17 | Φ 10 –Φ 22 | Φ 10 –Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable
