Durable Single Mode Fiber Optic Patch Cable , FC To LC Patch Cord Fiber Optic
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | FP-OM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | Fiber Optic Pigtail | Connector: | SC FC ST LC MPO MU MTRJ D4 SMA... |
|---|---|---|---|
| Fiber Type: | Singlemode, Multimode | Fiber Count: | 1~144 Multi-fibers |
| Cable Diameter: | 0.9mm, 2.0mm, 3.0mm | Cable Type: | PVC LSZH OFNR OFNP |
| Color: | Orange | ||
| High Light: | multimode fiber patch cord,fiber optic network cable |
||
Product Description

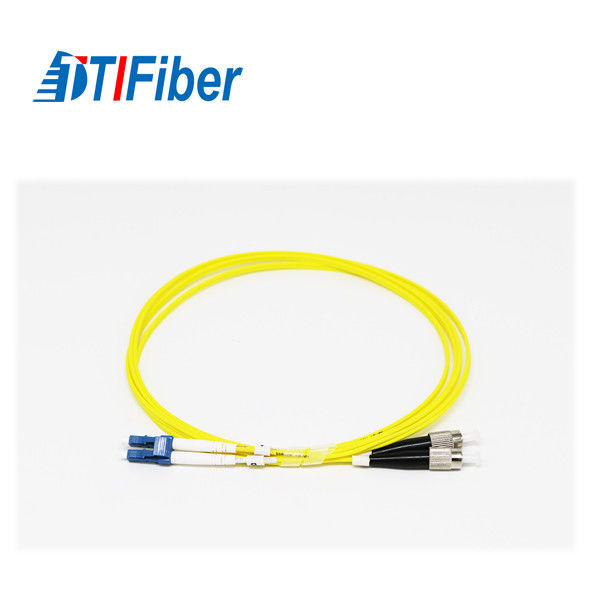

FC to LC Duplex Single Mode Fiber Optic Patch Cable - Yellow 1M
TTI offer a complete selection of LC LC fiber optic cable assemblies, these LC-LC fiber cables including single-mode and multimode types in simplex and duplex versions. Cables jacket can be Riser rated or Plenum rated, with LSZH cable and PVC options, and are all RoHS compliant cables. We supply related standard and custom made fiber optic cables with competitive prices and fast delivery.
LC part of the fiber optic cable is the compact small form factor LC fiber optic connector. It feature the RJ-45 style interface with low insertion loss and low back reflection, it is with high precision alignment and is widely used all over the world. We supply both simplex LC cable and duplex LC cable. The connector is with a 1.25mm O.D zirconia ceramic ferrule; LC fiber cable can be 9/125 single mode or 50/125 multimode or 62.5/125 multimode, PC, UPC or APC end face. It is compliant to Telcordia, EIA/TIA and IEC standards.
Features and Options
- Simplex, duplex or multi fiber assemblies
- Jacket types: Riser, PVC, Plenum rated, or LSZH (Low Smoke Zero Halogens) and are all RoHS cables
- Custom fiber optic cable lengths and jacket colors
- Various fiber types and wavelengths, typical 9/125 single-mode, 50/125 multimode and 62.5/125 multimode
- 0.9mm / 1.8mm / 2.0mm / 3.0mm outer diameter fiber optic cables
- PC, UPC, and APC polish types
- Good packing, competitive prices and very fast delivery
With the on-site, precision manufacturing equipment and our skilled workers, our LC/UPC to LC/UPC fiber optic patch cable are reliable and 100% tested according to industrial and international standards, these LC-LC fiber cables are with flexible customization, good prices and very prompt delivery.
Features:
- Meets ROHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
- Ferrule of end-face: PC, UPC, APC
- PVC, LSZH, OFNR, OFNP fiber cable optional
- Factory 100% test before shipment
- Low insertion loss and high return loss
- Serialized & Individual Test Records
Applications:
- Suitable for fiber optic patch panel
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, WAN, Test &Measurement
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.2bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: SC, LC,ST, FC, MTRJ, MU, MPO, MTP
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm, 3.0mm...
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
