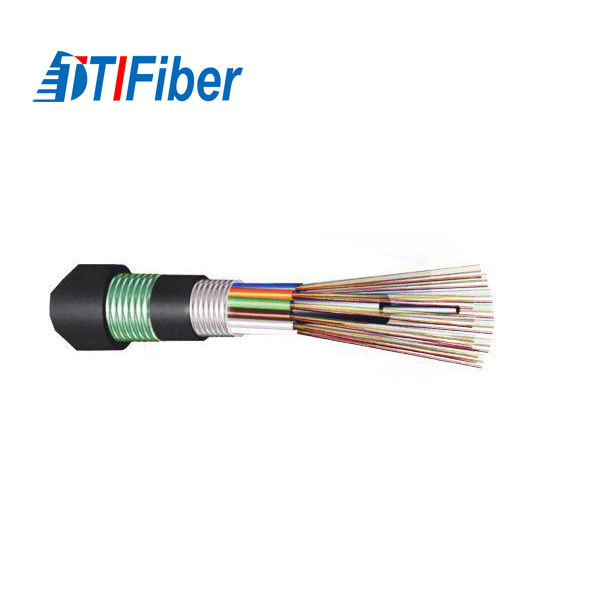

GYTA53 Fiber Optic Cord Doubel Sheath Armoured Flame Retardant Direct Buried Cable

GYTA53 Fiber Optic Cord Doubel Sheath Armoured Flame Retardant Direct Buried Cable

Product Details:

Place of Origin: China
Brand Name: TTI
Certification: CE/ISO9001
Model Number: GYTA53

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drum
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 5000m /day
Get Best Price Contact Now

Detail Information

Product Name: GYTA53 Fiber Count: 2-288 Core
Installation: Direct Underground Laying Application: Long Distance
Standard: IEC60794 Temperature Range: -40~+85
Package: Wooden Roll Color: Black
Warranty: 30 Years Jacket: PE
High Light:

fiber optical cable

,

fiber optic network cable

Product Description

Fiber Optic Cable GYTA53 Doubel Sheath Double Armoured Flame Retardant Direct Buried Cable



Characteristics:


· Good mechanical and temperature performance.


· Special tube filling compound ensure a critical protection of fiber.


· Crush resistance and flexibility.


· PSP enhancing moisture-proof.





Applications:

·Adopted to outdoor distribution and direct burial.

·Adopted to trunk power transmission system.

·Access network and local network in high electromagnetic interfering places.



Specification



No. of fibers 6F 12F 24F 36F 48F 72F 96F 144F
No. of tubes 1 1 2 3 4 6 8 12
fibers per tube 6 6 6 12 12 12 12 12
Filler Rod 5 4 2 3 2 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)
0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Inner sheath diameter
(±0.2mm)
9.2 9.2 9.2 9.2 9.2 9.2 10.8 13.2
Thickness of inner diameter
(±0.2mm)
1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Outer diameter (±0.5mm) 13.8 13.8 13.8 13.8 13.8 13.8 15.6 18.2
Thickness of out diameter
(±0.2mm)
1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Natural
Central strength member Material FRP Diameter 2.0mm±0.1mm
Water blcoking system Material Water blocking tape
Inner armor Material Aluminum tape
Inner sheath Material PE Color Black
Rip cord Qty 2pcs Color White
Outer armor Material Corrugated steel tape
Outer sheath Material PE Color

Product Pictures
