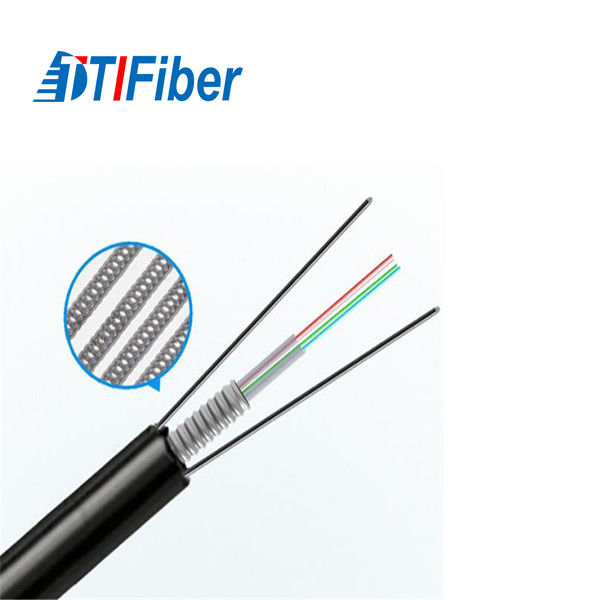

Black Outdoor Aerial Fiber Optic Cable GYXTC8S Singlemode With 8 Fiber Count
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | GYXTC8S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-8 works day |
| Supply Ability: | 100000meters/week |
|
Detail Information |
|||
| Color: | Black | Application: | Telecommunication |
|---|---|---|---|
| Jacket: | PVC LSZH PE | Fiber Count: | 2-288 Cores |
| Length: | 1m/2m/5m/customized | Fiber Type: | G652D/G657A |
| High Light: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Black Outdoor Aerial Fiber Optic Cable GYXTC8S Singlemode With 8 Fiber Count
Description:
.Loose tube style ,figure-8 optical fiber cable Jelly compound,optical fiber cable with steel wire messenger wire.
.Filling compound and water-proof tape.
.Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.
.High strength, tracking-resistant sheath.
Applications:
· Usable for aerial installation
· Long-haul communication systems
· Junction communication systems
. Subscriber network systems
. Local area network systems
Fiber Colour Code:
01- Blue 04- Brown 07- Red 10- Purple
02- Orange 05- Grey 08- Black 11- Pink
03- Green 06- White 09- Yellow 12- Aqua
The colour arrangement of optical fiber is specified in the fiber colour code
S: short term; L: long term; L.T: loose tube
Crush load: N/100mm; D: cable diameter
GY: outdoor cable;T: jelly compound; C8: Figure 8 cable
S: Steel tape + PE outer sheath
Fiber Colour Code:
01- Blue 04- Brown 07- Red 10- Purple
02- Orange 05- Grey 08- Black 11- Pink
03- Green 06- White 09- Yellow 12- Aqua
The colour arrangement of optical fiber is specified in the fiber colour code
S: short term; L: long term; L.T: loose tube
Crush load: N/100mm; D: cable diameter
GY: outdoor cable;T: jelly compound; C8: Figure 8 cable
S: Steel tape + PE outer sheath
