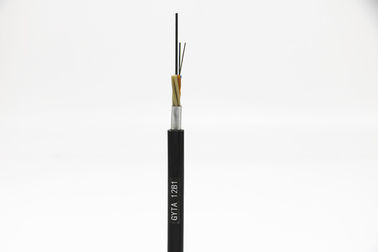

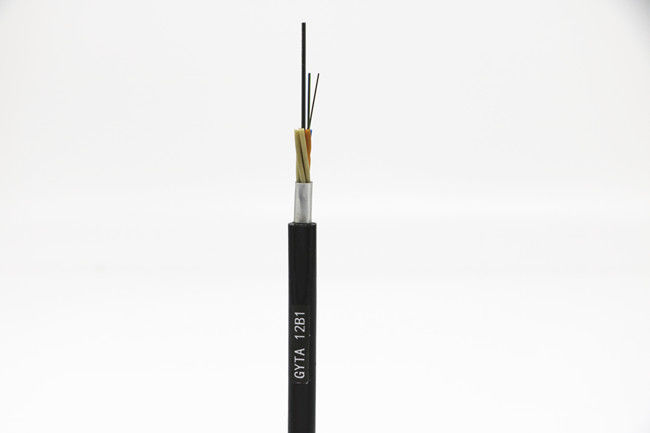

Single Mode Fiber Optic Cable GYTA Aluminum Tape Armoured Steel Wire Strength Member
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | GYTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, ,Paypal |
| Supply Ability: | 2000m/day |
|
Detail Information |
|||
| Product Name: | GYTA Fiber Cable | Core Type: | Singlemode |
|---|---|---|---|
| Strength Member: | Steel Wire | Fiber Option: | OS1,OS2 ,OM1,OM2,OM3 |
| Jacket Material: | HDPE ,MDPE | Application: | Long Distance |
| Package: | Wooden Drum | Quality Control: | 100% Test Before Shipping |
| Operating Temperature: | -40~+70 | Fiber Count: | 2-288 Core |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Singlemode Fiber Optical Fibre GYTA Aluminum Tape Armoured Non Self-Supporting Aerial
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
· Steel wire used as the central strength member
· Loose tube filling compound and 100% cable core filling
· PSP enhancing moisture-proof
Specifications
| Number of fiber | 2~144core | |||||||
| Moisture Barrier | Water blocking system | |||||||
| Central strength member | Material | Steel wire/FRP/FRP with PE cover | ||||||
| size | 1.5mm~2.0mm | |||||||
| Loose tube | material | PBT | ||||||
| diameter | 2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compoun | |||||||
| Armoring | Material | Corrugated steel tape | ||||||
| Outer sheath | material | PE,HDPE | ||||||
| diameter | 1.70±0.2mm | |||||||
| core | Cable diameter | weight | |||||
| 2 cores to 60 cores | 10.0±0.3mm | 115±5kg/km | |||||
| 72 cores | 10.5±0.3mm | 120±5kg/km | |||||
| 96 cores | 12.5±0.3mm | 180±5kg/km | |||||
| 144 cores | 14.5±0.3mm | 245±5kg/km | |||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 600 | |||||
| Min allowable Tensile Strength(N) |
Short term | 1500 | |||||
| Crush Load (N/100mm) | Long term | 300 | |||||
| Crush Load (N/100mm) | short term | 1000 | |||||
| Operation temperature (℃) |
-40+70 | ||||||
| Installation temperature(℃) |
-20+60 | ||||||
