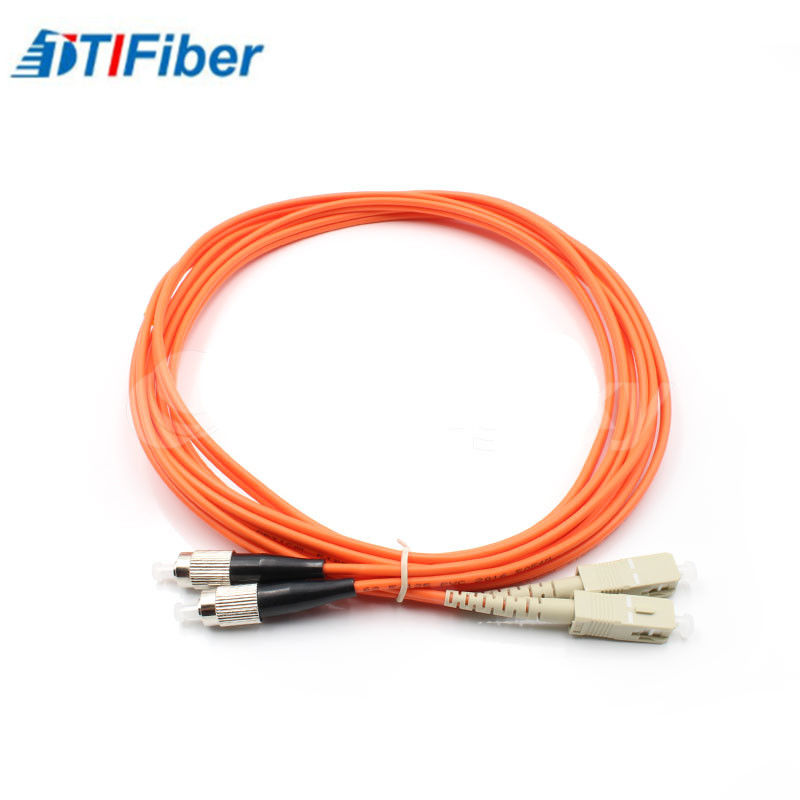

Outdoor Jumper Fiber Optic Patch Cord Cable Duplex FC - SC Connector Customsized Length
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | ISO, SGS, ROHS |
| Model Number: | FC - SC Jumper |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, T/T, D/A, , |
| Supply Ability: | 8000 Pieces per Week |
|
Detail Information |
|||
| Fiber Type: | SM/MM | Length: | 1M/2M/3M/Customsized |
|---|---|---|---|
| Ferrule End-face: | APC/UPC/PC | Application: | Telecommunication |
| Jacket: | PVC | Color: | Orange/Blue/Pink... |
| Quality Contral: | 100% Test | ||
| High Light: | multimode fiber patch cord,fiber optic network cable |
||
Product Description
Outdoor Jumper Fiber Optic Patch Cord Cable Duplex FC - SC Connector Customsized Length
Description:
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Yogel patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three
kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to
manufacture so as to ensure the high quality of mass production.
| Connector | FC to SC | Jacket OD | 3.0mm |
| Fiber Type | 62.5/125μm | Fiber Count | Duplex |
| Polish Type | UPC to UPC | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Minimum Bend Radius | 30mm | Storage temperature | -40~75°C |
| Fiber Grade | G.652.D | Polarity | A(Tx) to B(Rx) |
Features:
Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Simplex or duplex is available
PVC or LSZH fiber optical cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)
Application:
FTTX+LAN
Testing equipment
Telecommunication
Optical fiber CATV
Optical communication system
Packaging & Delivery:
Packaging Details: Individual package
Port: Shenzhen
Lead Time : Shipped in 7 days after payment
Specification:
| Fiber optic Jumper Technical Standard: | |
|---|---|
| Insertion Loss: | PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB; |
| Return Loss: | SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB; MM PC≥ 35dB, UPC≥35dB |
| Interchangeability: | ≤ 0.2dB |
| Salt Spray: | ≤ 0.2dB |
| Repeatability: | (1000 times) ≤ 0.1dB |
| Vibration: | (550Hz 1.5mm) ≤ 0.1dB |
| High Temperature: | ( +85 sustain 100 hours) ≤ 0.2dB |
| Low Temperature: | (-40 sustain 100 hours) ≤ 0.2dB |
| Temperature Circularly: | (-40+85 sustain 100 hours) ≤ 0.2dB |
| Humidity: | (+25+65 93 R. H. 100 hours) ≤ 0.2db |
| Apex Offset: | 0μ m≤ ≤ 50μ m |
| Radius of Curvature: | 7mm≤ ≤ 25mm |
| Cable Type: | Simplex, Duplex, Fan-Out; |
| Connector Type: | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
| Fiber Mode: | SM (single mode) G652D, G655, G657, MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125) |
