GYXTC8S Overhead Duct Fiber Optic Cable G652D Figure 8 Aerial 24 Core PVC LSZH PE Jacket
Product Details:
Place of Origin: | China |
Brand Name: | TTI |
Certification: | CE/ROHS/ISO9001 |
Model Number: | GYXTC8S |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | wooden drum |
Delivery Time: | 5-8 works day |
Supply Ability: | 100000meters/week |
Detail Information |
|||
Number Of Conductors: | ≥ 10 | Color: | Black |
---|---|---|---|
Application: | Telecommunication | Jacket: | PVC LSZH PE |
Fiber Count: | 2-288 Cores | Length: | 1m/2m/5m/customized |
Fiber Type: | G652D/G657A | ||
Highlight: | multimode fiber patch cord,fiber optical cable |
Product Description
Fiber Optic Cable G652D Figure 8 Aerial 24 Core GYXTC8S Overhead Duct Cable
Dimensional Characterstics | ||||||||||
Part Number |
Fiber Count |
Outside Diameter (mm) |
Stranded Units |
Cable Weight (kg/km) |
Tensile Load | Crush Load | Bend Radius | |||
S (N) |
L (N) |
S (N) |
L (N) |
S (N) |
L (N) |
|||||
GYXTC8Y0809P-BK | 8 | 7.0/13.5 | 7*1.0mm | 115 | 3000 | 1000 | 1000 | 300 | 20D | 10D |
GYXTC8Y1209P-BK | 12 | 7.0/13.5 | 7*1.0mm | 115 | 3000 | 1000 | 1000 | 300 | 20D | 10D |
GYXTC8Y2409P-BK | 24 | 7.0/13.5 | 7*1.0mm | 115 | 3000 | 1000 | 1000 | 300 | 20D | 10D |
Note: GYXTC8Y denotes Figure 8 Central loose tube aerial optical cable ;09 denotes fiber type (09: SM) | ||||||||||
P denotes PE sheath; BK denotes black outer sheath; | ||||||||||
Mechanical & Environmental Characteristics | ||||||||||
Item | Characteristics | |||||||||
Operation temperature | -20℃~ + 60℃ | |||||||||
Storage temperature | -40℃~ + 60℃ | |||||||||
Sheath Material | P:PE | |||||||||
Description: | ||||||||||

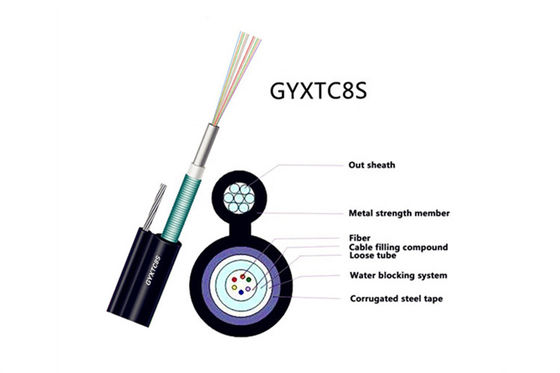

.Loose tube style ,figure-8 optical fiber cable Jelly compound,optical fiber cable with steel wire messenger wire. .Filling compound and water-proof tape. .Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises. .High strength, tracking-resistant sheath. | ||||||||||
Applications: | ||||||||||
· Usable for aerial installation | ||||||||||
· Long-haul communication systems | ||||||||||
· Junction communication systems | ||||||||||
. Subscriber network systems | ||||||||||
. Local area network systems | ||||||||||
Fiber Colour Code: | ||||||||||
01- Blue | 04- Brown | 07- Red | 10- Purple | |||||||
02- Orange | 05- Grey | 08- Black | 11- Pink | |||||||
03- Green | 06- White | 09- Yellow | 12- Aqua | |||||||
The colour arrangement of optical fiber is specified in the fiber colour code | ||||||||||
S: short term; L: long term; L.T: loose tube | ||||||||||
Crush load: N/100mm; D: cable diameter | ||||||||||
GY: outdoor cable;T: jelly compound; C8: Figure 8 cable | ||||||||||
S: Steel tape + PE outer sheath |
