12 Cores MPO-LC Fiber Optic Patch Cord Black Jacket Outdoor Waterproof IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , ESCROW, PayPal, Monthly settlement |
| Supply Ability: | 5000pcs/Day |
|
Detail Information |
|||
| Name: | MPO-LC Fiber Patch Cord | Fiber: | 12 Cores |
|---|---|---|---|
| Connector: | LC/FC/ST/SC/MPO | Jacket: | LSZH,PVC |
| Cable Type: | Armored Or Without Armored | Fiber Tyoe: | G652D, G657A1,G657A2,... |
| Highlight: | multimode fiber patch cord,fiber optic network cable |
||
Product Description

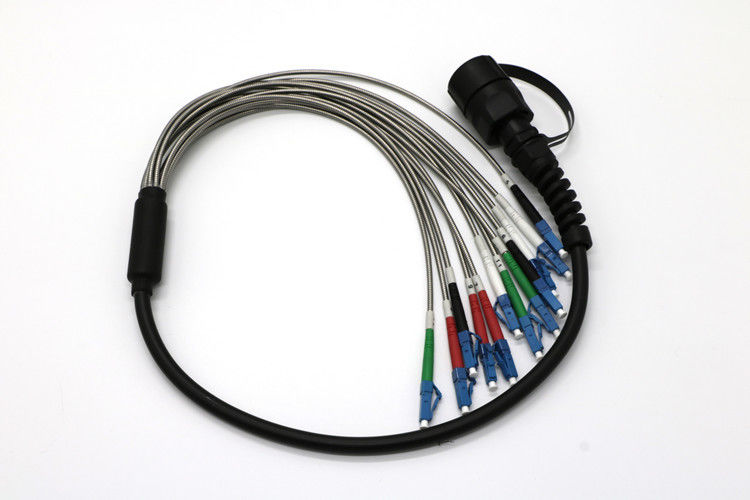

MPO-LC Outdoor Waterproof Fiber Optic Cable with 12 Cores Patch Cord Black Jacket
Feature:
Faster network roll out and customer installations.
100% tested assemblies built in a controlled environment.
Lower cost deployment by utilizing plug and play solutions.
Custom built solutions with quick turnaround times.
Application:
Fiber-to-the-Antenna (FTTA).
Automation and industrial cabling.
Surveillance systems.
Naval and ship building.
Broadcast.
CATV, LAN, MAN, WAN, Test &Measurement
Peformance:
IL <0.3dB
RL >60dB
Operating temperature : -40℃ to + 85℃
Fiber type: G657A1/A2, 62.5/125, 50/125
Waterproof Rate: IP65
Specification:
| Item | Single mode | ||
| Ferrule End-face | PC | UPC | APC |
| Insert attenuation | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥45dB | ≥50dB | ≥55dB |
| repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) | ||
| Outer diameter | 1.6mm |
||
Packing:
PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Detail:
