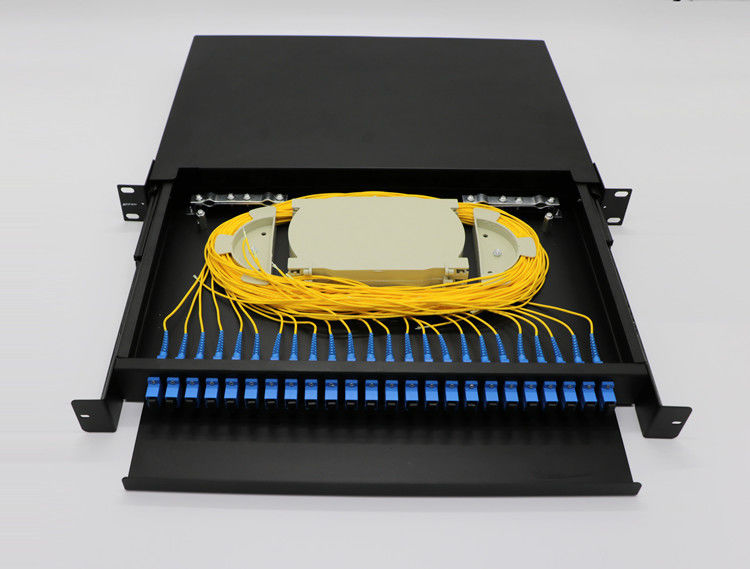

Light Weight Fiber Optic Terminal Box 24 Ports FTTH Rack Drawer Type With Patch Panel
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | OTB-RF-1UA-SC24 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 5 pcs / Case |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, , |
| Supply Ability: | 5000 pcs /week |
|
Detail Information |
|||
| Name: | OTB-RF-1UA | Material: | Cold-roll Steel |
|---|---|---|---|
| Height: | 1U | Color: | Black Or White |
| Application: | Telecommunication | Working Temperature: | -40℃ ~ + 60℃ |
| Structure: | 19 Inch Rack Mounted | Fiber Port: | LC,SC,FC,ST |
| High Light: | fiber terminal box,fiber optic termination box |
||
Product Description
FTTH Rack Drawer Type Fiber Optic Cable Patch Panel, Terminal Box 24 Port
Description:
- Fixed Fiber Optic Terminal Box is with a reasonable design, 19'' standard structure, rack mounted, can be applied in the branch connection of fuber termination, available for the installation of FC, SC, ST, LC adapters
- The drawer is the holding board for splicing; the position can be adjusted according to the holes on the board
- Aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; flexible and convenient usage
- The cover can be opened and components put in easily
- All the internal and outer cables can enter the panel via fixed fittings so that the pigtails can work there strongly
- With wide working space, easy to withdraw the fibers when testing and distributing
Application:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks, LAN Network
- Data communications networks
- Local area networks
- Active device termination
Features:
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management
- FC, SC, ST, LC adapter patch panel for option, easy to replace.
- Front access panel design for easy operation
- Suitable for 19’’ or 23’’ standard optic distribution cabinets
- Capacity 12 fibers, splice trays of 12 fibers (OST-005B)
- 4 fiber cable entry ports at rear side
Specification:
| Type | Max Capacity | Size(mm) | Weight(kg) |
| OTB-RF-1UA | 24 | 430X250X1U |
2.6 |
