Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | GYXTC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Drum or as Client's Request |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, |
| Supply Ability: | 10000 pieces per day |
|
Detail Information |
|||
| Name: | GYXTC 8S | Application: | Aeria |
|---|---|---|---|
| Mode: | Single Mode Or Multimode | Core: | 12,24 |
| OEM: | Support | Jacket: | HDPE |
| Highlight: | fiber optic network cable,fiber optical cable |
||
Product Description

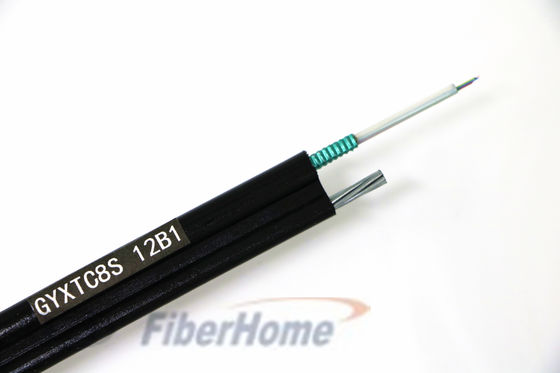

Self - Support Stranded Figure 8 Fiber Optical Cable 12 Cores GYXTC 8S
Product Description:
China manufacturer supplier Loose tube stranding Figure 8 Self-support Cable
Recommended laying methods:
1. Self-support aerial
Structure characters:
1. Water proof layer between steel tape and cable core
2. “8” Figure cross section
3. Double coated PE corrugated steel tape under PE sheath
4. Steel messenger wire
Feature:
1. Excellent water proof layer
2. Steel tape armored, excellent anti-crush properties
3. Good anti-bullet properties
4. Messenger wire as the support member made excellent
5. Anti-pull performance and easy installation
Applicable fields:
Long-distance communication, LAN
Technical data:
| Fiber range | Steel messenger specs | Cable outer diameter | Messenger wire outer diameter | Cable weight | Cable height | Min bending radius | Safe tension | Min broken tension | Max crush loading force | Allowable tension | ||
| Static | Dynamic | Short term | Long term | |||||||||
| 2-12 | 1*7-3.0 | 8.3 | 5.0 | 135 | 15.8 | 10D | 20D | 1000 | 7990 | 2000 | 1000 | 3000 |
