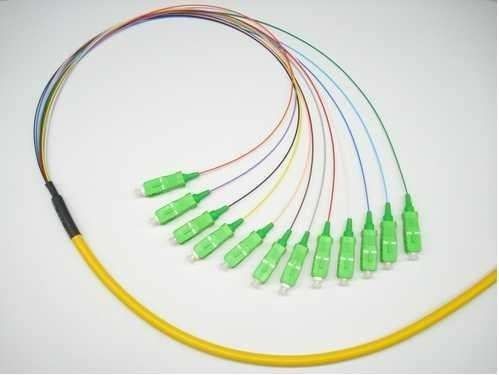

SC/APC- SC/APC fiber optic patch cord Fiber jumper SC-SC APC Multi core 12 fiber 24core
Product Details:
| Place of Origin: | China |
| Brand Name: | TRT |
| Certification: | ISO, UL ,CE ,RoHS |
| Model Number: | SC - SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag in carton |
| Supply Ability: | 80000 pieces per week |
|
Detail Information |
|||
| Brand Name: | OEM | Model Number: | Patch Cord SX SM SC/APC |
|---|---|---|---|
| Product Name: | Fiber Optic Patchcord SC/APC-SC/APC Simplex Single Mode | Connector: | SC/APC-SC/APC |
| Type: | Singlemode OS1 9/125 G652D | IL: | Less Than 0.3db |
| RL: | More Than 55 Db | Cable Diameter: | 2.0mm 3.0mm |
| Cable Material: | PVC LSZH | Length: | 1M 1.5M 3M...... |
| Ferrule: | Ceramic Zirconia | MOQ: | No |
| High Light: | multimode fiber patch cord,fiber optical cable |
||
Product Description
SC/APC- SC/APC fiber optic patch cord Fiber jumper SC-SC APC Multi core 12 fiber 24core
|
Description |
||||
|
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Joinwit patch cords assembled with various types of connectors (such as FC, SC, ST,LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
|
||||
| Parameter | ||||
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.3 (max≤0.5) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C | -40~+75 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0) ,≥60N ( Φ0.9) | |||
| Fiber | SM OS1 9/125um, OM1 50/125um, OM2 OM3 62.5/125um,OM4, etc | |||
| Cable diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
| Application | ||||
|
1. CATV 2. Active device termination 3. Telecommunication networks 4. Metro 5. Local Area Networks(LANs) 6. Data Processing networks 7. Test Equipment 8. Premise installations. 9. Wide Area Networks(WANs)
|
||||
| Packing and Shipment Reference | |
| Product | Fiber optic patch cord/cable singlemode simplex SC/APC-SC/APC |
| Packing | 1 pcs/ PP bag 500 pcs /box |
| Measurment | 46.5*38.5*23 CM |
| G.W. | about 6-10 kgs/ctn (based on detail item) |
| Shipment |
By Express: EMS Fedex UPS TNT DHL SF etc By Sea By Air |
| Order Information | ||||||
| MOQ | 500 pcs | |||||
| * | * | ** | * | ** | * | ** |
| Optical Patch Cords | Connector Form | Cable diameter | Fiber Mode | Cable Length | Polishing Type | Fiber Qty |
|
N=Patch cord |
C=SC T=ST F=FC L=LC P=MPO R=MTRJ U=MU S=SMA D=Din
|
3=3.0mm 2=2.0mm 9=0.9mm |
S=9/125um (SM) M=62.5/125um (OM1) F=50/125um (OM2) W=50/125um (OM3) K=Armored cable P=Ftth drop cable |
01=1 meter 03=3 meter 05=5 meter 15=15 meter 20=20 meter ......... |
1=PC 2=UPC 3=APC |
01=simplex 02=duplex 12=12 cores |
Why Choose Us
1).Lead time
With more than 200 employees in my company,at least 10,000 connectors can be produced.So we can assure the lead time.
2).Research Department
With our separate research team,it is advantageous that we are able to have products made according to your requirements.
(3).Quality assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.We have 10 year exporting experience.So if there are problems with the goods,replacement will be available.
